Vehicle Protection
Vehicle Protection range — Seat Intrusion Protectors (H031), Protective Door Liners (H030), Stabilizer Pads (I012), Tow Bar Steps (I013), Vehicle Roo Bar (H032), Truck Bumpers (I011). HDPE and polyurethane parts for mining light-vehicle and underground-truck fleets.
At a glance
Specifications.
Why this product
Engineered for working sites.
— Seat Intrusion Protectors (H031) —
Polyline Industries has developed a protection plate for work vehicles used in the mining industry. The plate is designed to protect the underside and rear of the driver and passenger seats from any external intrusion or penetration of the vehicle, such as that from sharp metal objects.
Seat Intrusion Protectors can be customised to suit the layout of any vehicle to allow the plate to be fitted around the base of the seat, whilst still allowing for seat adjustment and vehicle controls. Worked example: a vehicle carrying rock bolts on the rear tray was reversed into the drive wall, forcing the rock bolts forward and penetrating the rear of the cab — the protector plate halts that intrusion before it reaches the driver.
— Protective Door Liners (H030) —

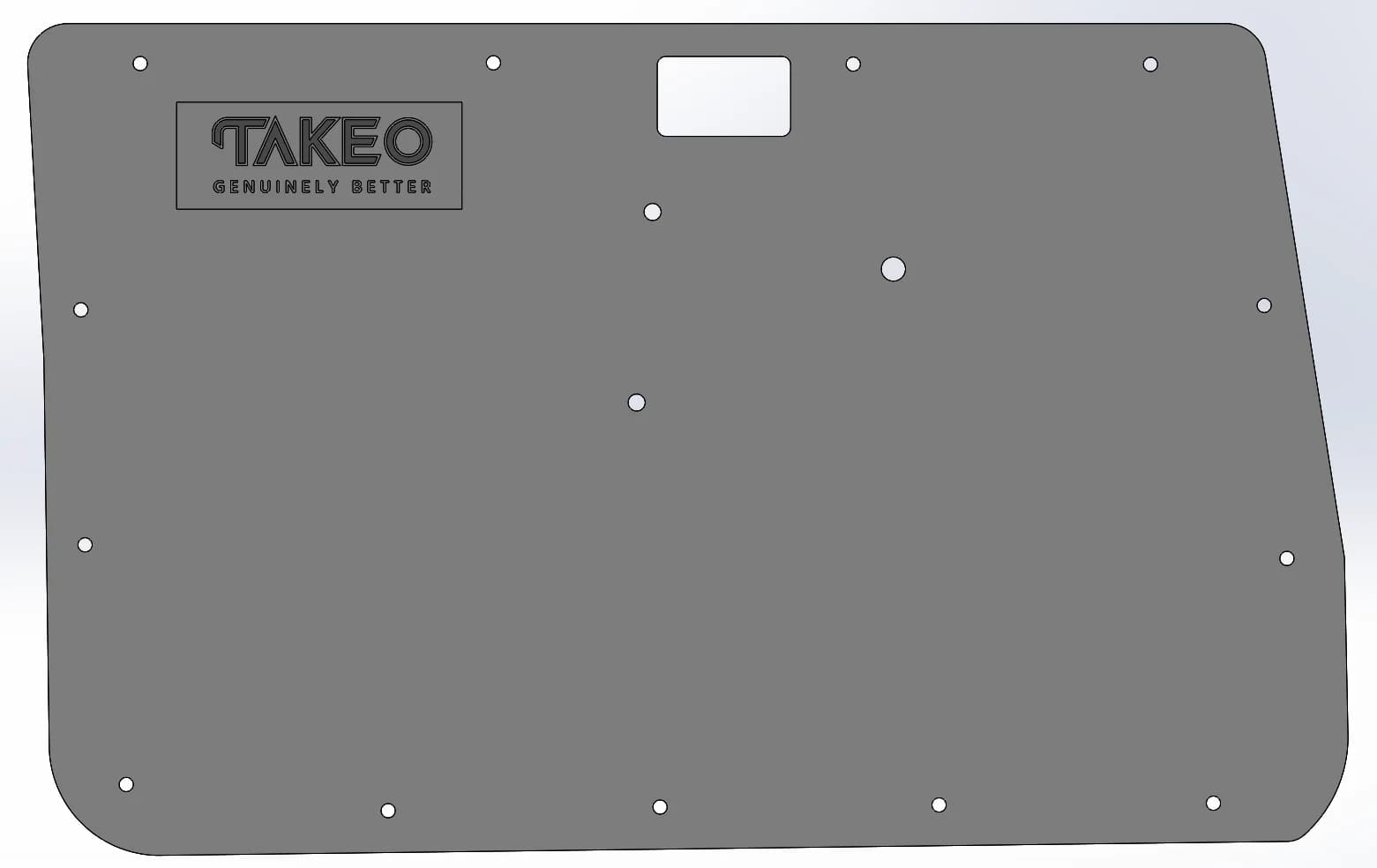

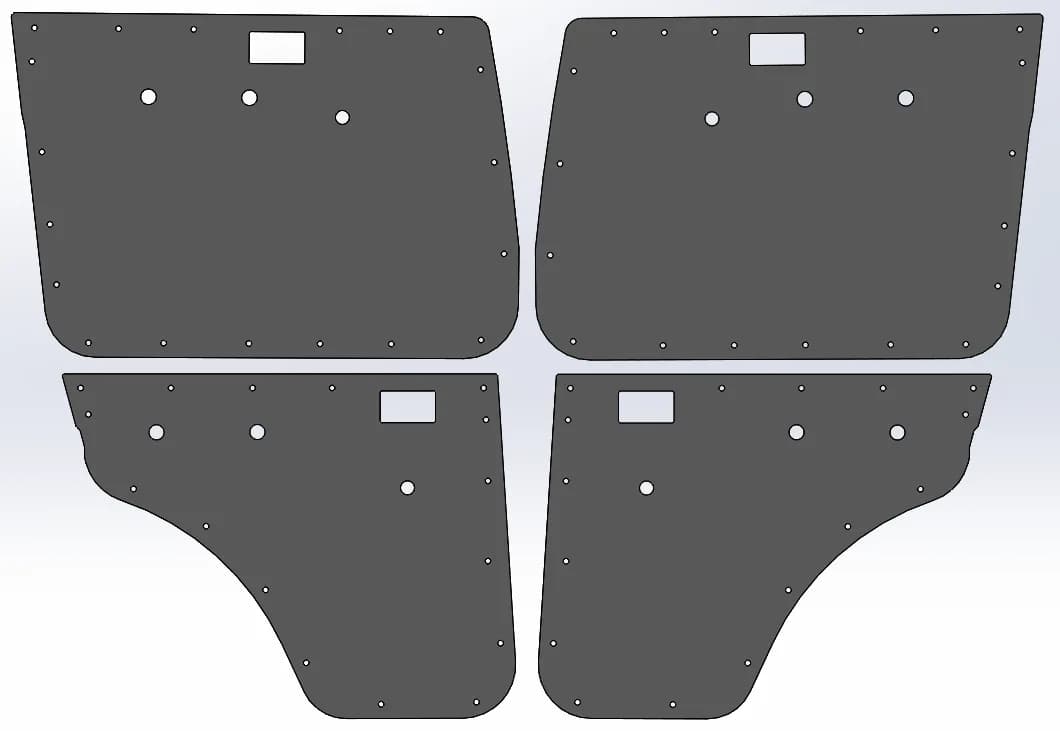

Protection for the interior surfaces of work vehicles used in the mining environment. Customised to suit the door of any vehicle. Liners can be removed on disposal of the vehicle. Reference fitments: Toyota LandCruiser and Hilux fleet door cards, available as 2-set (DP.LC.SC.MW.2SET) or 4-set (DP.LC.DC.MW.4SET) kits.
— Stabilizer Pads (I012) —
A polyurethane pad to facilitate a stable, level, non-slip base on a typical 7° decline. Used for hydraulic stabilizer arms on cranes, elevated work platforms or lifting devices.
— Tow Bar Steps (I013) —
A polyurethane step which attaches to a tow bar, forming a non-slip step.
— Vehicle Roo Bar (H032) —
A customised PE vehicle roo bar. This impact-resistant smart bar is light weight, reduces shock load to the driver and protects the vehicle in a collision.
— Truck Bumper (I011) —
A tough polyurethane bumper typically found on underground trucks and earth-moving equipment.
Sizes
Pick a size — or spec your own.
| Size | OD | Length | Weight | Notes |
|---|---|---|---|---|
| Seat Intrusion Protector — H031 | — | — | — | Customised to vehicle floor and rear-of-seat geometry |
| Door Card 2-set kit — DP.LC.SC.MW.2SET | — | — | — | Front pair · LandCruiser reference (H030) |
| Door Card 4-set kit — DP.LC.DC.MW.4SET | — | — | — | Full vehicle · LandCruiser reference (H030) |
| Stabilizer Pad — I012 | — | — | — | 7° decline non-slip base · for crane and EWP stabilizer arms |
| Tow Bar Step — I013 | — | — | — | Polyurethane non-slip step · clamps to tow bar |
| Vehicle Roo Bar — H032 | — | — | — | Customised PE smart bar · light weight · impact-resistant |
| Truck Bumper — I011 | — | — | — | Polyurethane bumper · underground trucks and earth-moving equipment |
| Custom kit | — | — | — | Cut to alternate fleet vehicles on request |
Gallery
Built in WA.
Ready to specify vehicle protection?
Send your site details and requirements — our engineering team will scope and quote.
