AIR · Air
Primary Ventilation
Self-closing fan doors, modular vasse, pedestrian vent doors and drop-board regulators. HDPE primary-ventilation infrastructure that sits around the Polyduct range — corrosion-free, plastic-hinged, significant savings over steel.
At a glance
Specifications.
Why this product
Engineered for working sites.
Polyline manufactures the HDPE primary-ventilation infrastructure that sits around — and complements — the Polyduct ducting range. Polyethylene self-lubricates at the hinges, never seizes from corrosion, and offers significant capital savings over steel equivalents.

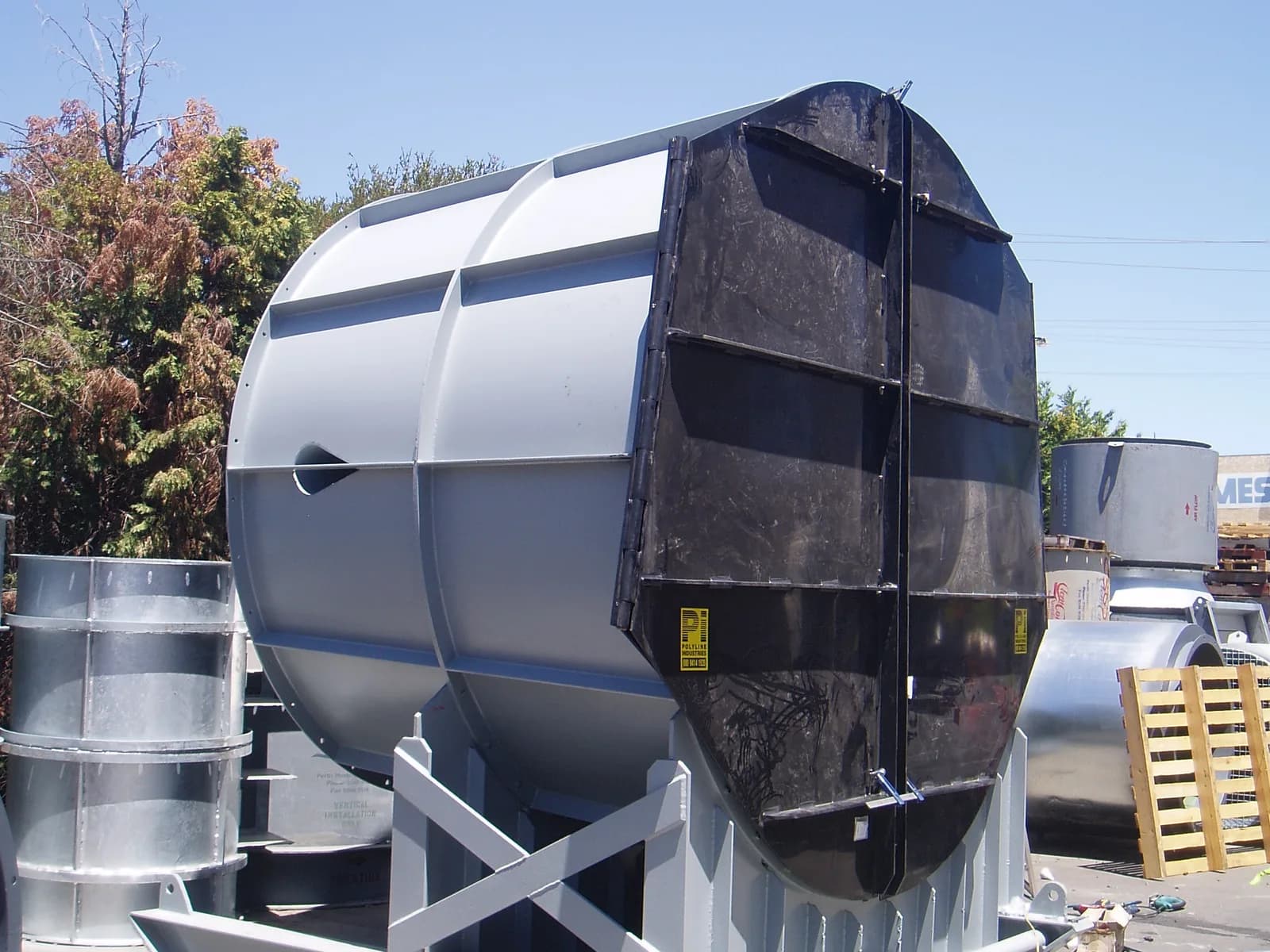

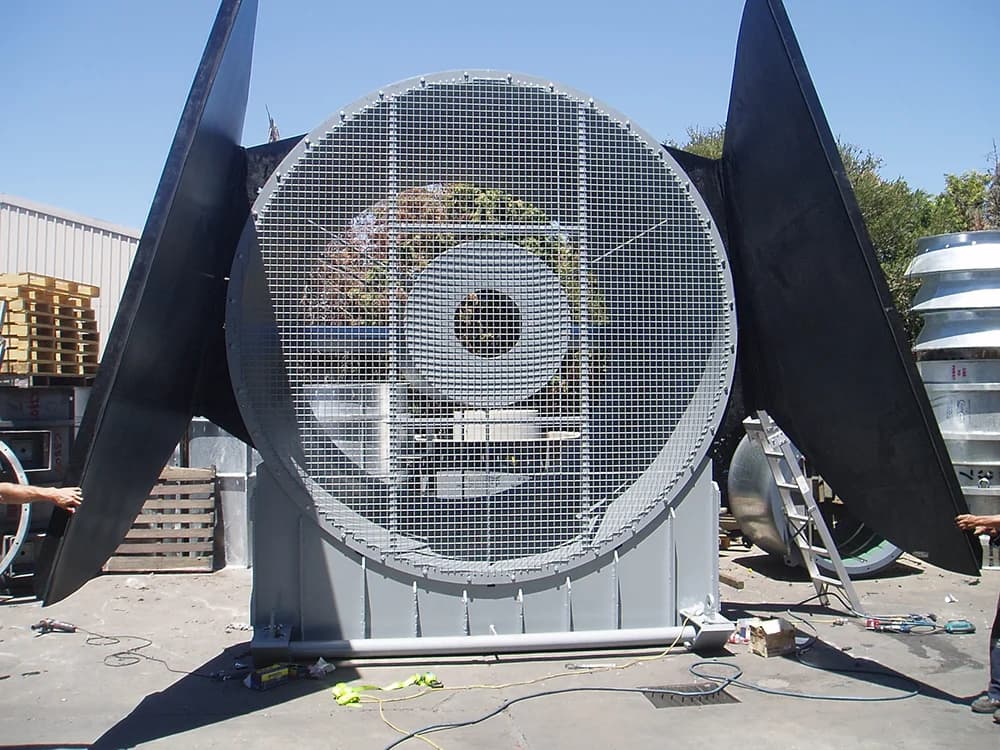

- Self-Closing Fan Doors — 4.5 m diameter standard. 20 mm HDPE, 175 kg, plastic hinge (no counter-balance required), stops back-flow when fan is off

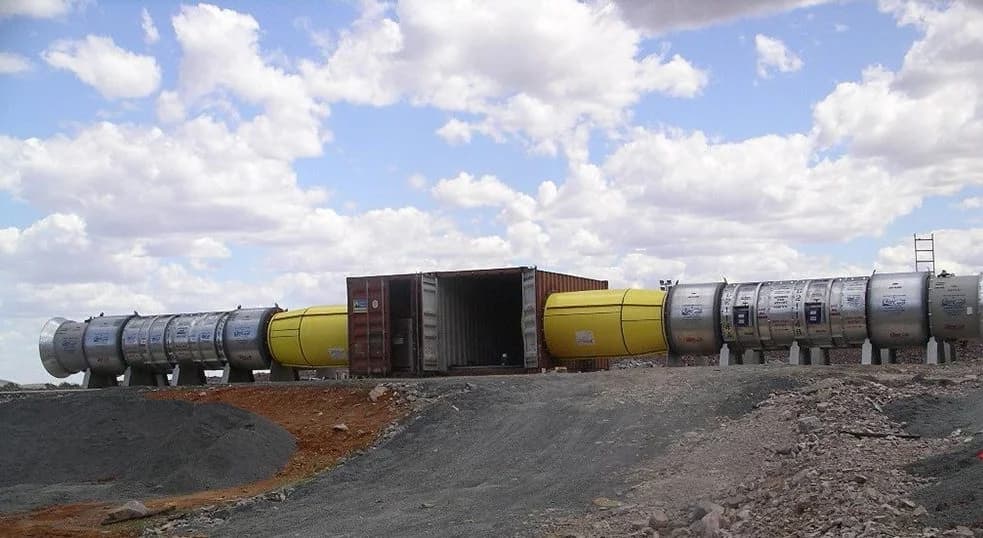

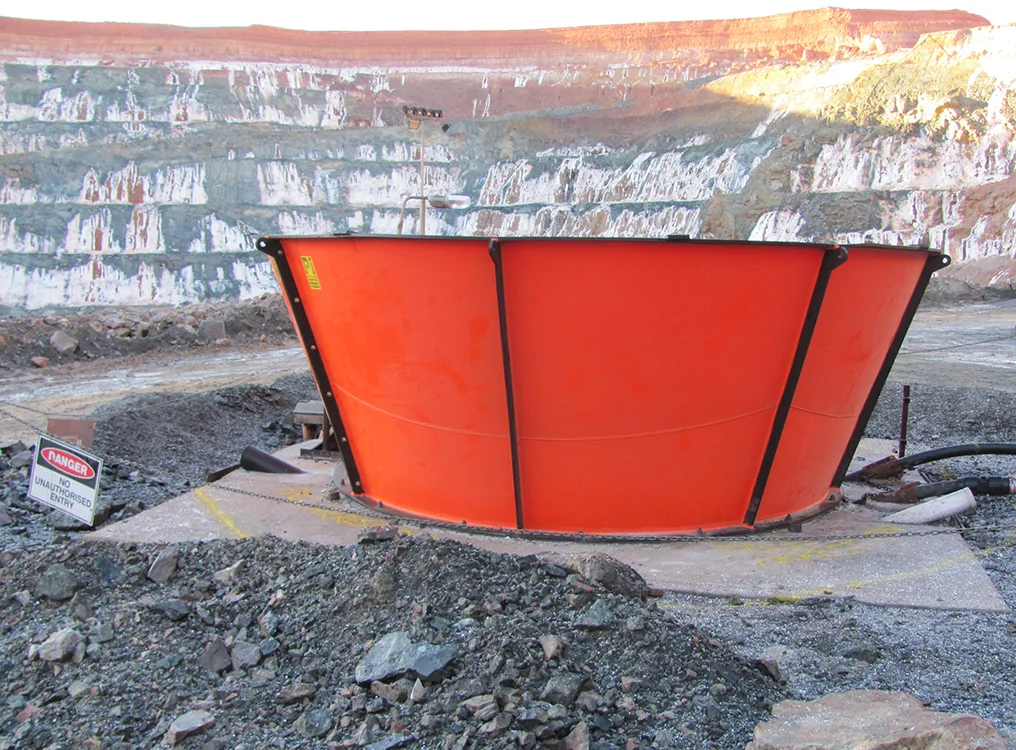

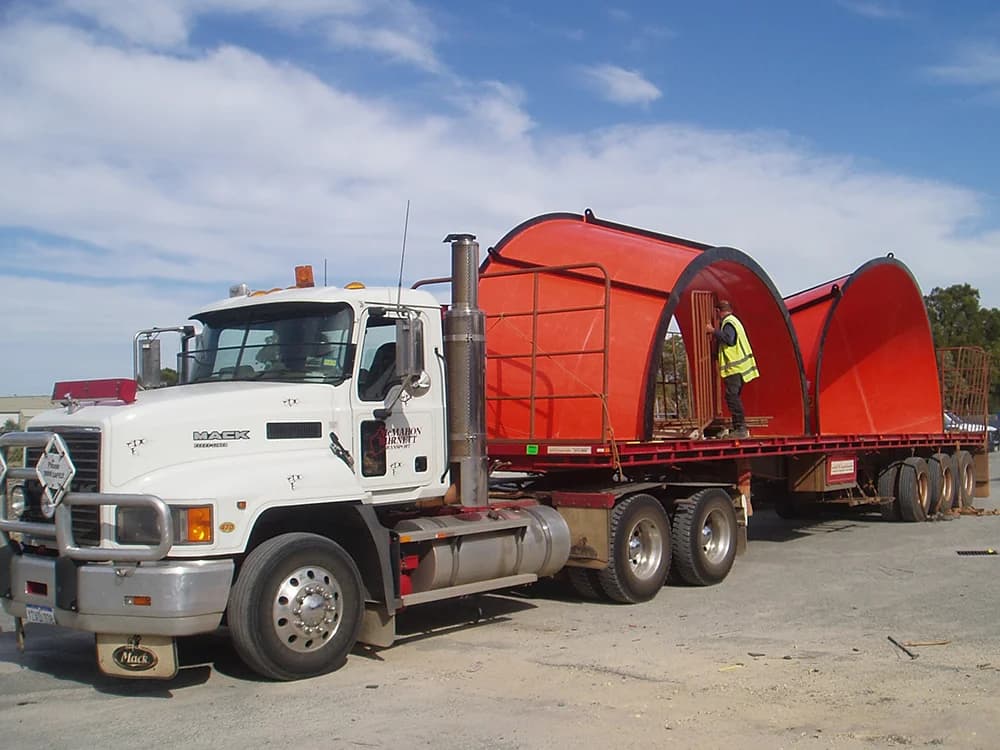

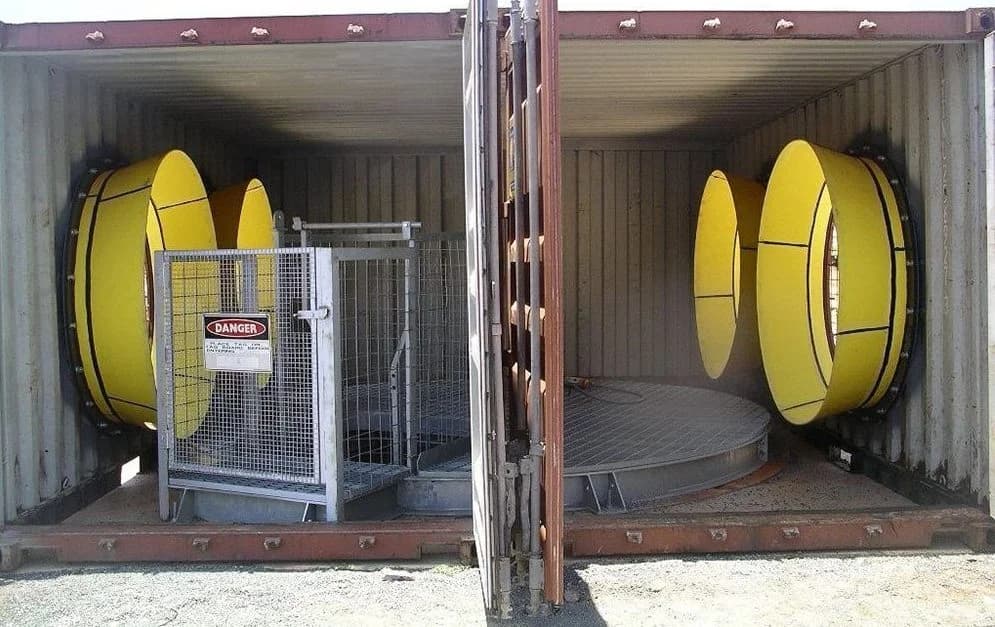

- Modular Vasse / Evase — 5.5 m diameter standard. 15 mm HDPE, 5500 × 4000 × 2100 mm, 535 kg. Modular for road transport
- Pedestrian Vent Doors — galvanised frame. 850 × 2100 mm, 29 kg, 10 mm HDPE, hi-vis yellow
- Drop-Board Regulators — 1300 × 200 mm, 5 kg. Lightweight boards lock together to form an air-flow control wall
All primary-ventilation parts are HDPE: corrosion-free, UV-stable, low-maintenance and built for the working life of the mine. Custom sizes to your shaft, drift or fan-case geometry on request. Damper doors are listed as a separate product under People; intake cones are part of Segmented Ducting.
Sizes
Pick a size — or spec your own.
| Size | OD | Length | Weight | Notes |
|---|---|---|---|---|
| Self-Closing Fan Door — 4.5 m | — | 4500 | 175 | 20 mm HDPE · plastic hinge · no counter-balance |
| Modular Vasse — 5.5 m | — | 5500 | 535 | 15 mm HDPE · 5500 × 4000 × 2100 mm · modular for transport |
| Pedestrian Vent Door | — | 2100 | 29 | 10 mm HDPE in galvanised frame · 850 × 2100 mm · hi-vis yellow |
| Drop-Board Regulator | — | 1300 | 5 | Lock-together boards · 1300 × 200 mm |
Gallery
Built in WA.
Ready to specify primary ventilation?
Send your site details and requirements — our engineering team will scope and quote.
