Hose Hangers
Industrial Hose Hangers and Hose Reels — Service Pipe Hangers in two hanging styles plus wall-mounted hose reels. Fabricated in 20 mm hi-vis yellow HDPE; non-corrosive, UV-stable, and customisable to your pipe configuration.
At a glance
Specifications.
Why this product
Engineered for working sites.
— Service Pipe Hangers (H010 / H011 / H013) —
Two styles of Service Pipe Hangers are available in 20 mm yellow HDPE. The standard configuration has positions for three (3) pipes — 2 × 63 mm and 1 × 110 mm diameter. Width 150 mm, Length 500 mm. Other configurations to meet your requirements are available on request.
- Hanging Style 1 — Hanging point for use over the knocker line. Optional key-lock for bolt mounting to a flat surface
- Hanging Style 2 — 40 mm diameter Hanging point
- Stock Code H010 — Style 1 (knocker line)
- Stock Code H011 — Style 1 with key lock
- Stock Code H012 — 4 × 63 mm OR 2 × 63 + 1 × 110 mm, 500 × 150 mm, 1 kg
- Stock Code H013 — Style 2 (40 mm hanging point)

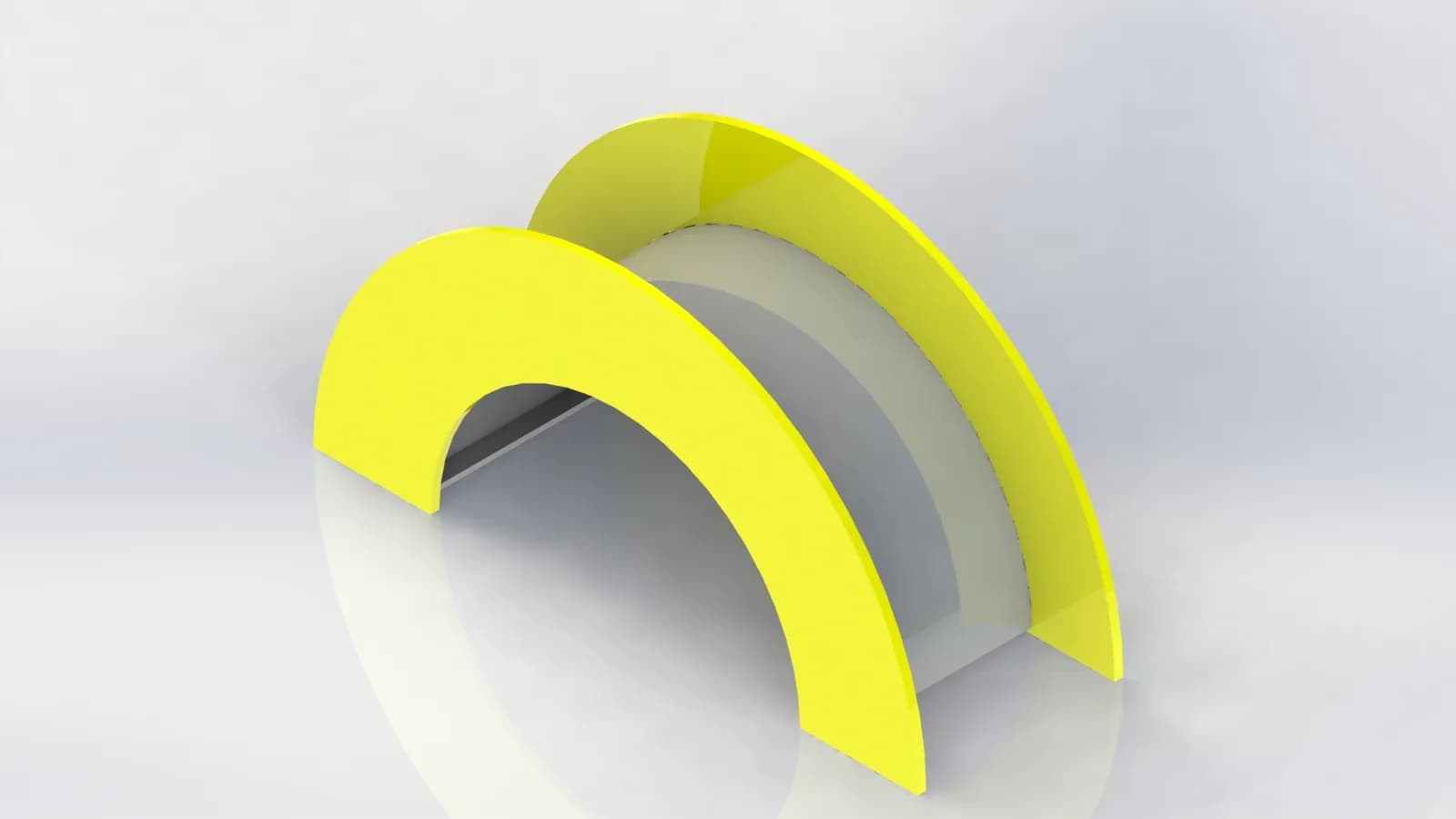

— Hose Reel (H015) —
Ideal for the underground environment to keep hoses off the ground. Ensures vehicles do not run over hoses, and ensures hoses are not damaged in the event of an emergency. Fabricated in high-visibility yellow. Non-corrosive Hose Reels can be easily mounted to any wall via a single bolt — for the storage of hoses such as fire hoses.
Wall-mounted (HH.WM) and hand-rail-mounted (HH.RM) HDPE hangers are also available — refer to the latest Polyline drawings.
Sizes
Pick a size — or spec your own.
| Size | OD | Length | Weight | Notes |
|---|---|---|---|---|
| H010 — Style 1 (knocker line) | — | 500 | — | 20 mm yellow HDPE · 500 × 150 mm · 1 kg · 2 × 63 mm + 1 × 110 mm pipe positions |
| H011 — Style 1 with key lock | — | 500 | — | As H010 plus key-lock for bolt-mounting to a flat surface |
| H012 — Variant 4 × 63 mm | — | 500 | 1 | 4 × 63 mm OR 2 × 63 + 1 × 110 mm · 500 × 150 mm |
| H013 — Style 2 (40 mm hanging point) | — | — | — | 40 mm diameter hanging point |
| H015 — Hose Reel | — | 700 | 4 | 700 × 200 mm · single-bolt wall mount · hi-vis yellow · for fire hoses |
| HH.WM — Wall-Mounted | — | — | — | Bolt-up wall plate |
| HH.RM — Hand-Rail-Mounted | — | — | — | Clamps to standard hand-rail without drilling |
| Custom | — | — | — | Other pipe configurations on request |
Gallery
Built in WA.
Ready to specify hose hangers?
Send your site details and requirements — our engineering team will scope and quote.
