Cable Stoppers for Underground Mining Equipment
Polyurethane cable stoppers for electrical cables powering jumbos and other electric rigs. Designed to grip the cable without pinching it, with recessed bolt assemblies that help reduce exposed hardware during cable winding. Choose from five colour-coded cable sizes.
Polyurethane body · 316 stainless steel hardware · 8 mm Allen-key assembly
Cable grip with a considered fastening design.
Designed to protect cable integrity
The polyurethane body grips the cable without relying on a pinching action.
Recessed fasteners
The bolt assembly sits within the stopper body, helping reduce the risk of contact with protruding hardware while the cable is wound.
Corrosion-resistant materials
A non-corroding polyurethane body is paired with 316 stainless steel bolts, tee nuts and washers.
Straightforward assembly
Built-in nut sockets hold the nuts in position. Assemble using an 8 mm Allen key.
Polyurethane E90A body. Stainless steel fixings.
| Component | Material |
|---|---|
| Cable stopper body | Polyurethane E90A |
| Bolts, tee nuts and washers | 316 stainless steel |
Polyurethane material properties
The following values are reproduced from the supplied product datasheet.
| Property | Value | Test method |
|---|---|---|
| Hardness | 90 ± 3 Shore A | AS 1683.15 |
| Tensile strength | 42.0 MPa (6,092 psi) | AS 1683.11 |
| 100% modulus | 9.3 MPa (1,349 psi) | AS 1683.11 |
| 300% modulus | 17.8 MPa (2,582 psi) | AS 1683.11 |
| Angle tear strength, Die C | 85 kN/m | AS 1683.12 |
| Trouser tear strength | 37 kN/m | AS 1683.12 |
| Elongation | 420% | AS 1683.11 |
| DIN resilience | 55% | DIN 53512 |
| DIN abrasion resistance, 10 N | 55 mm³ | AS 1683.21 |
| DIN abrasion resistance, 5 N | 18 mm³ | AS 1683.21 |
| Compression set, 22 hours at 70°C | 30% | AS 1683.13 |
| Cured specific gravity | 1.10 g/cm³ | AS 1683.4 |
See the details.

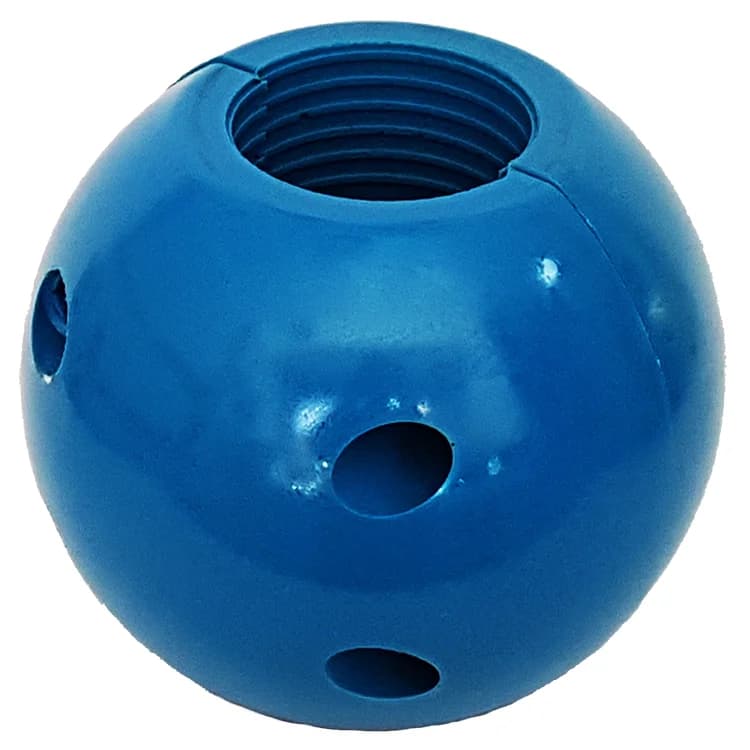

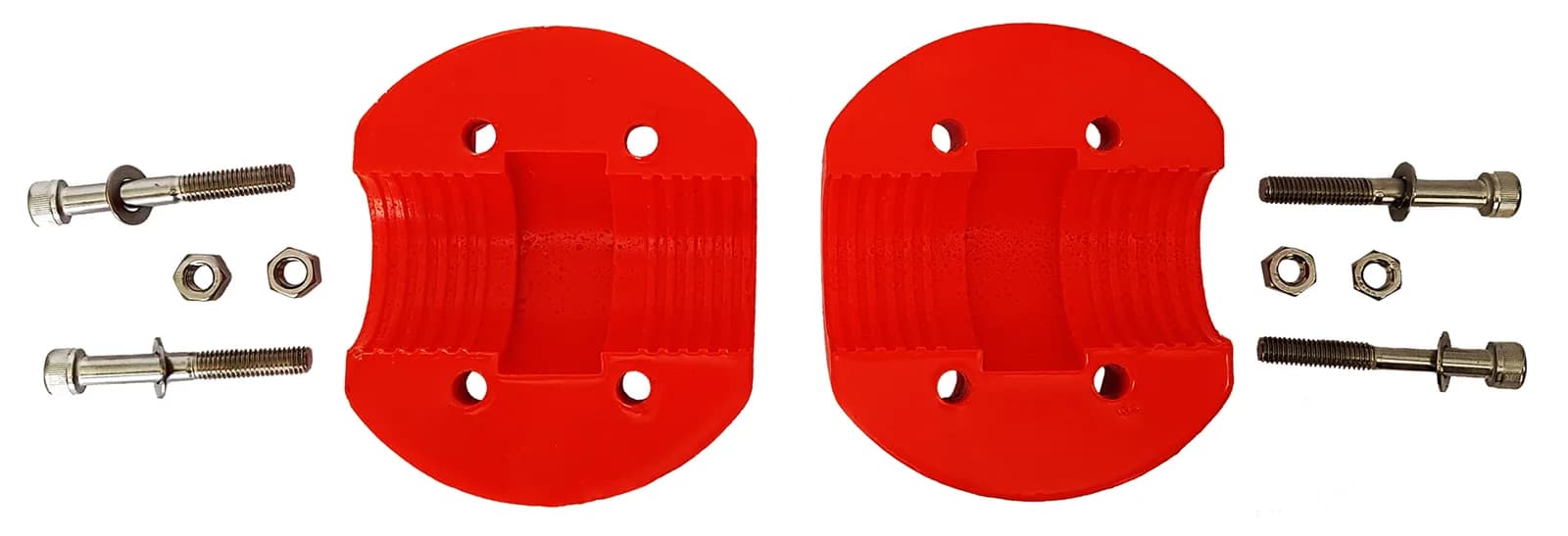

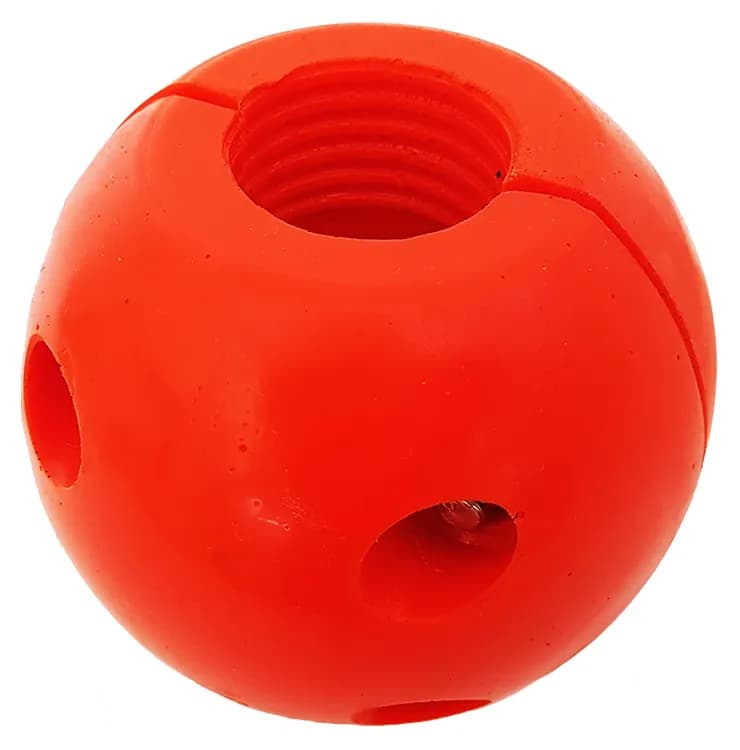

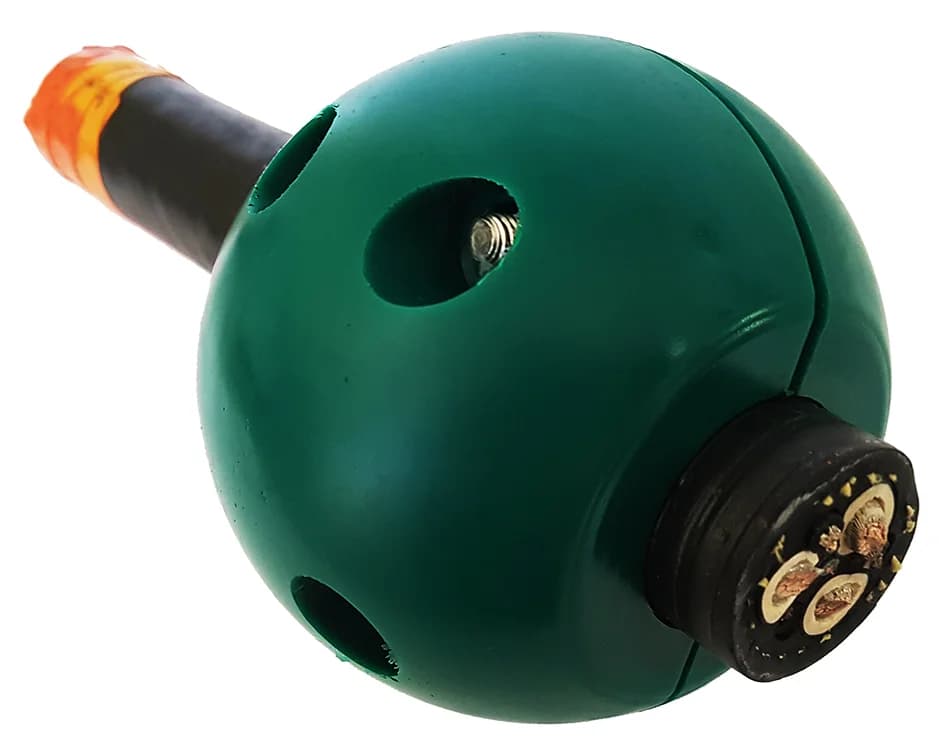

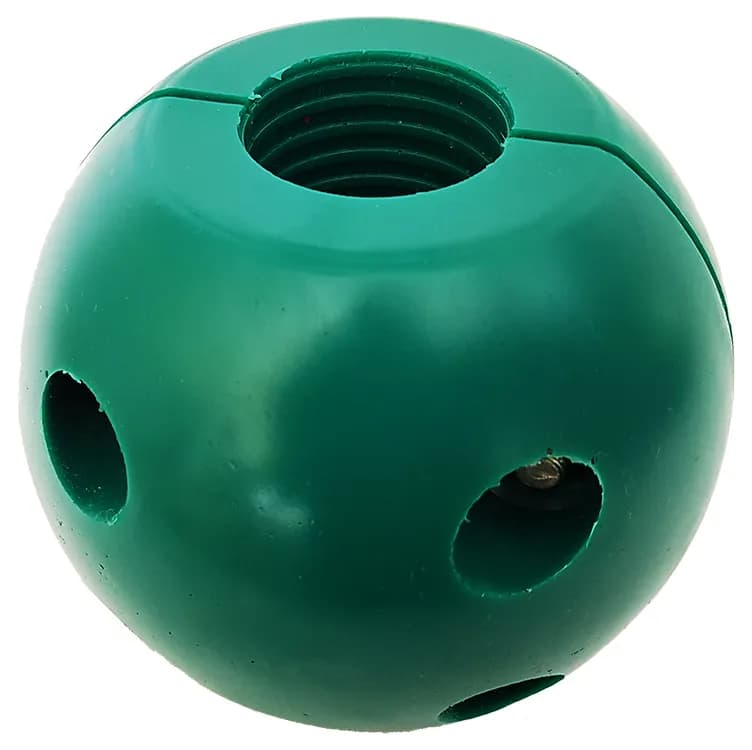

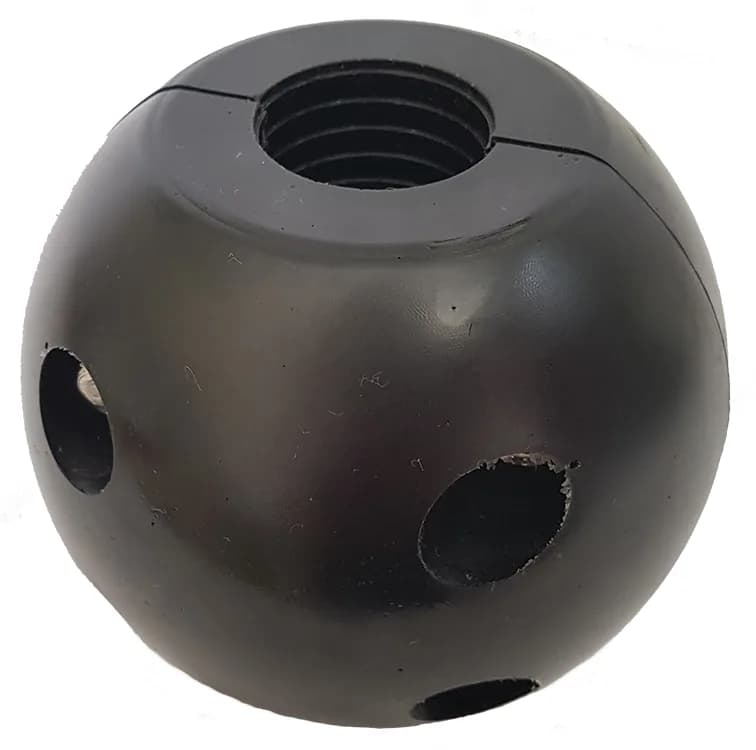

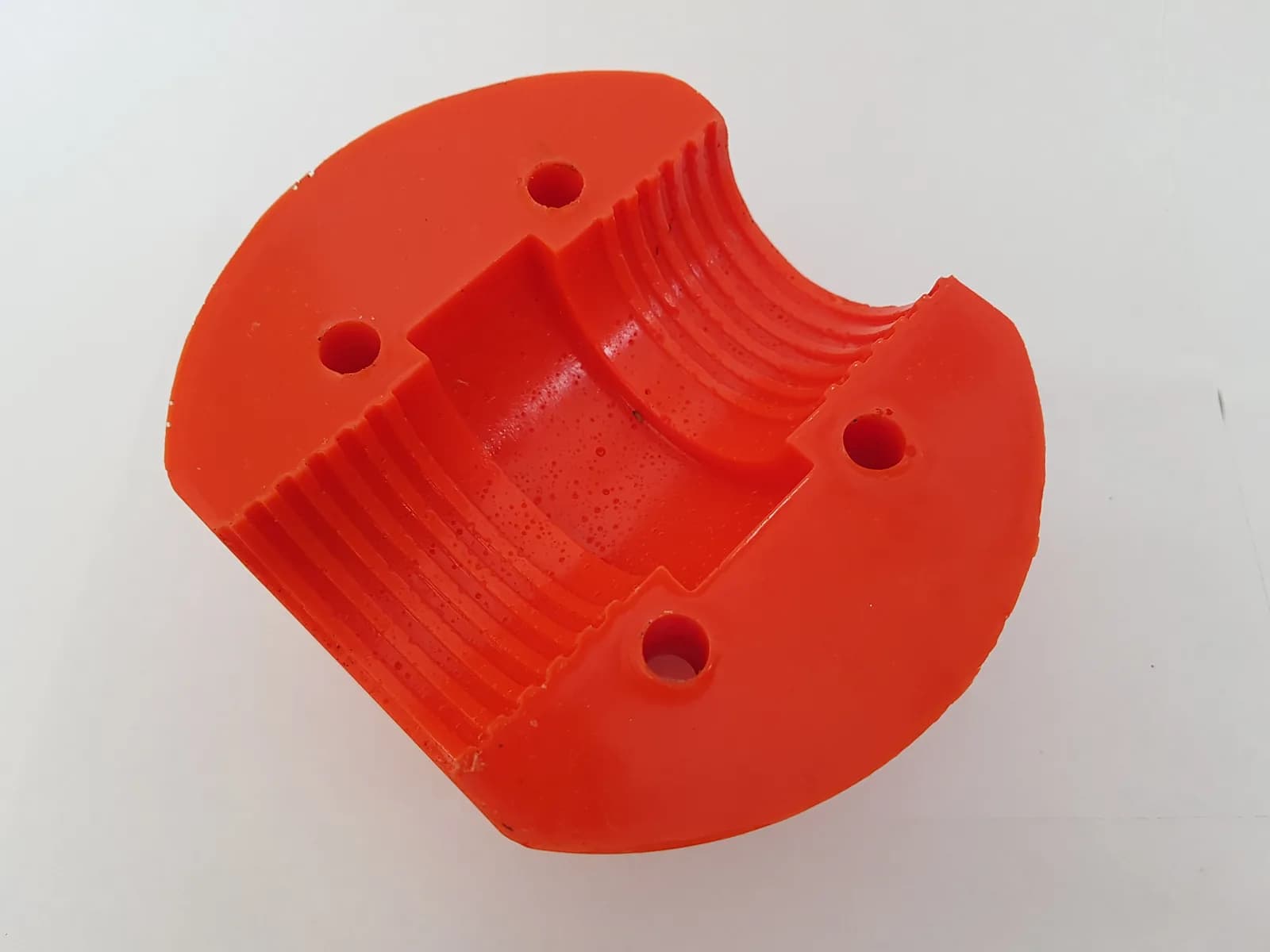

The assembled stopper on a cable, the two halves with fastening hardware, and the colour-coded standard sizes.
Tell us your cable size and quantity.
Include the part number or colour if known, along with the quantity you need.
