Floating Platform Solution
Support your pumps. Connect your access. Position your intake.
Polyline combines HDPE pontoons, floating walkways and intake screens into a system designed for your operation. Start with the equipment you need to support, then select the deck space, access and connections to make it work.
Components can be supplied together or individually.
The space and support your equipment needs.

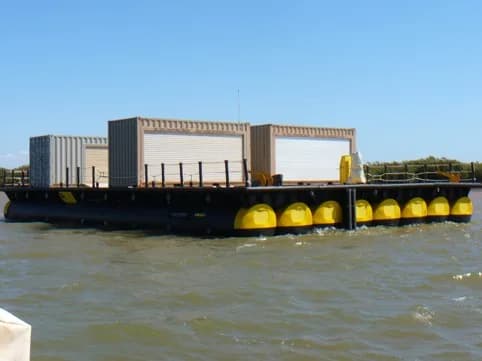

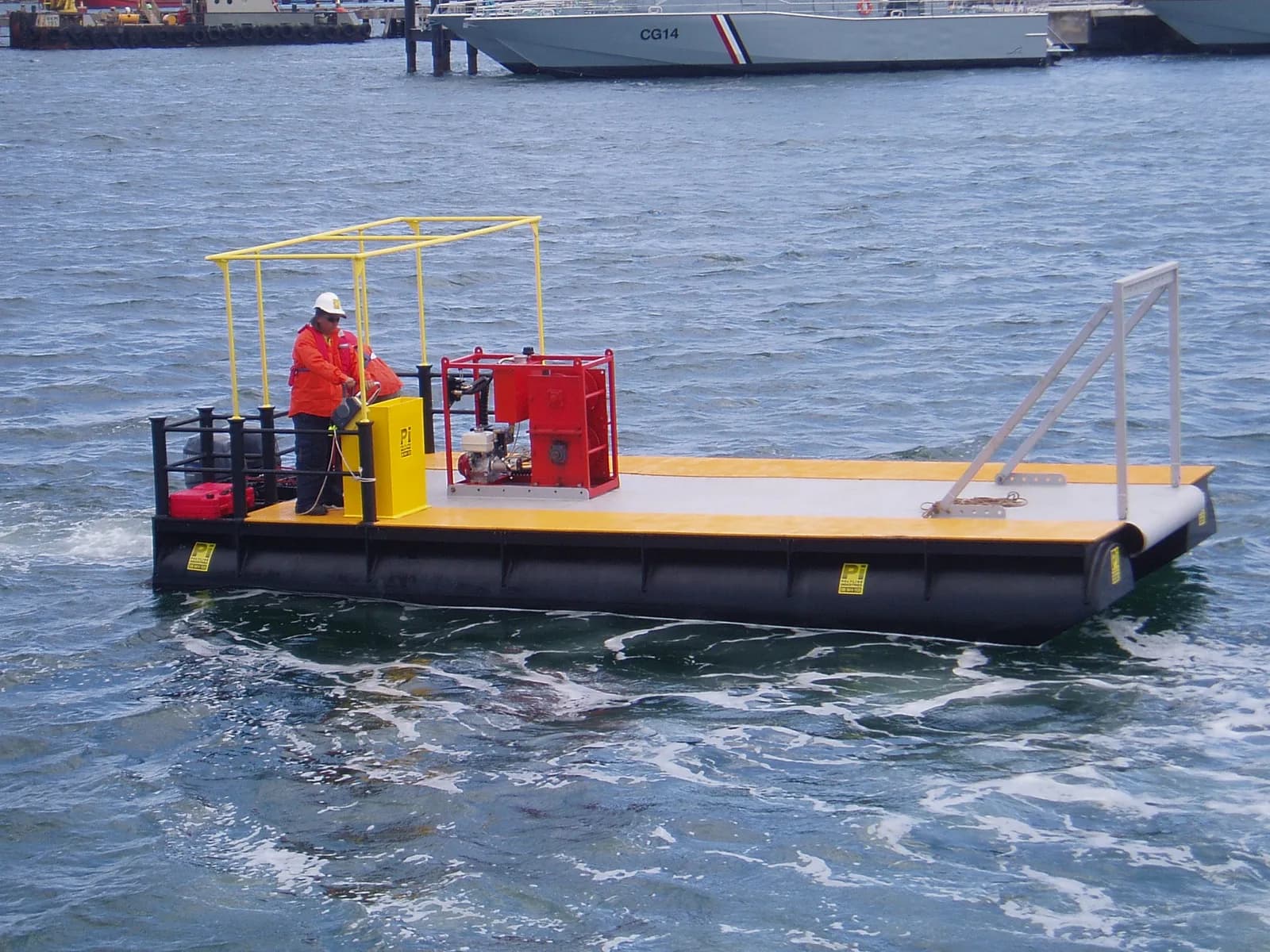

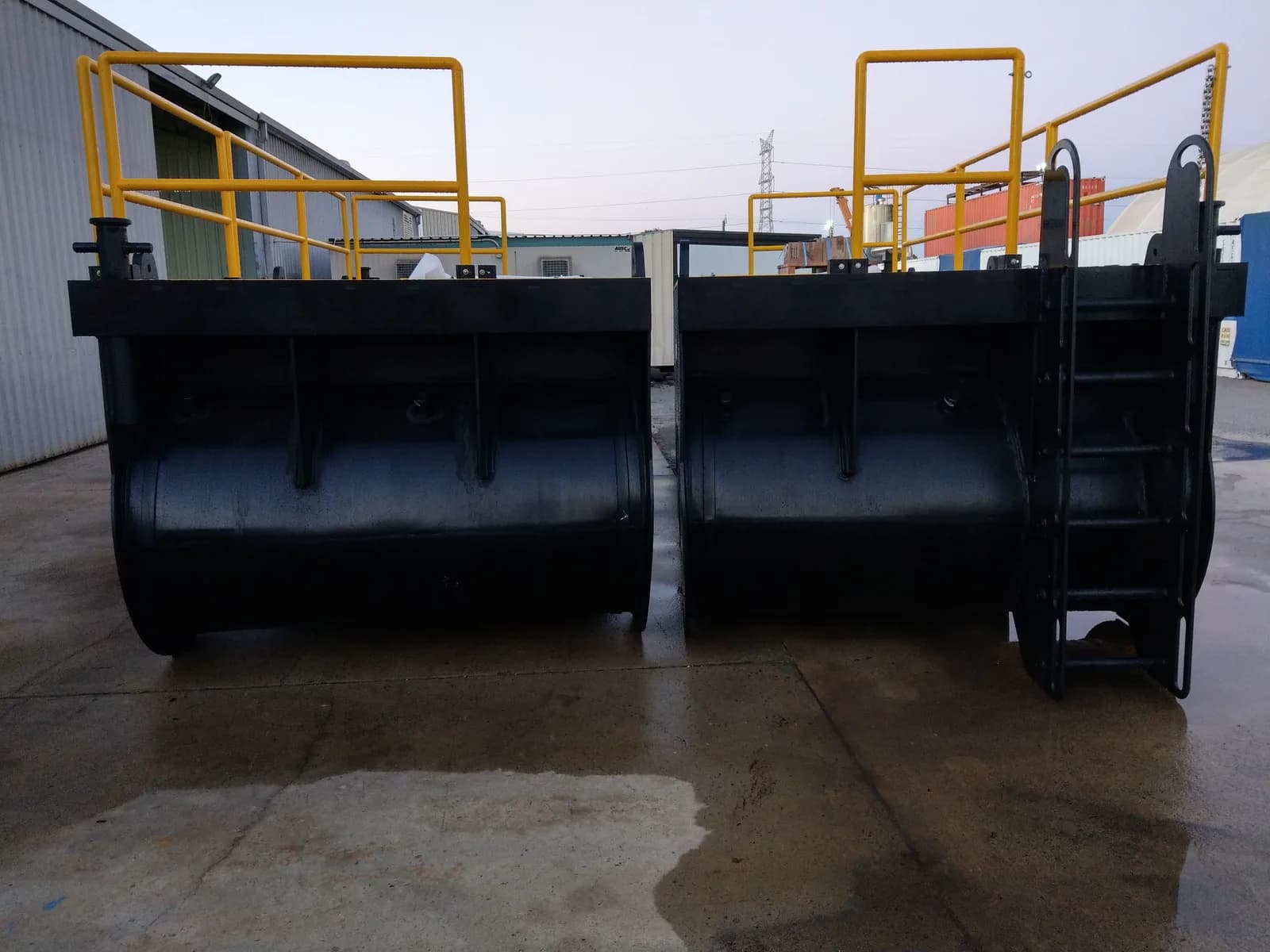

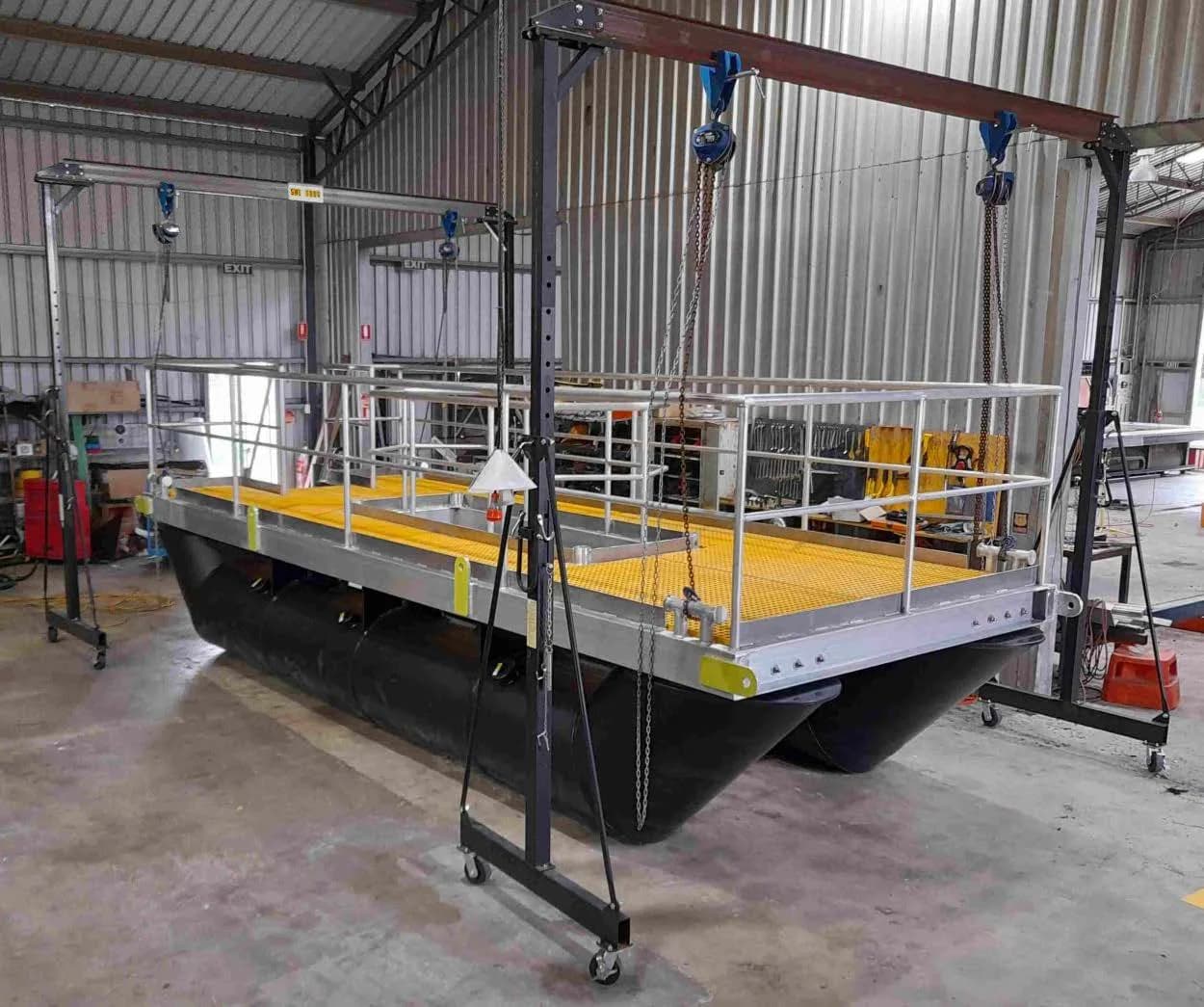

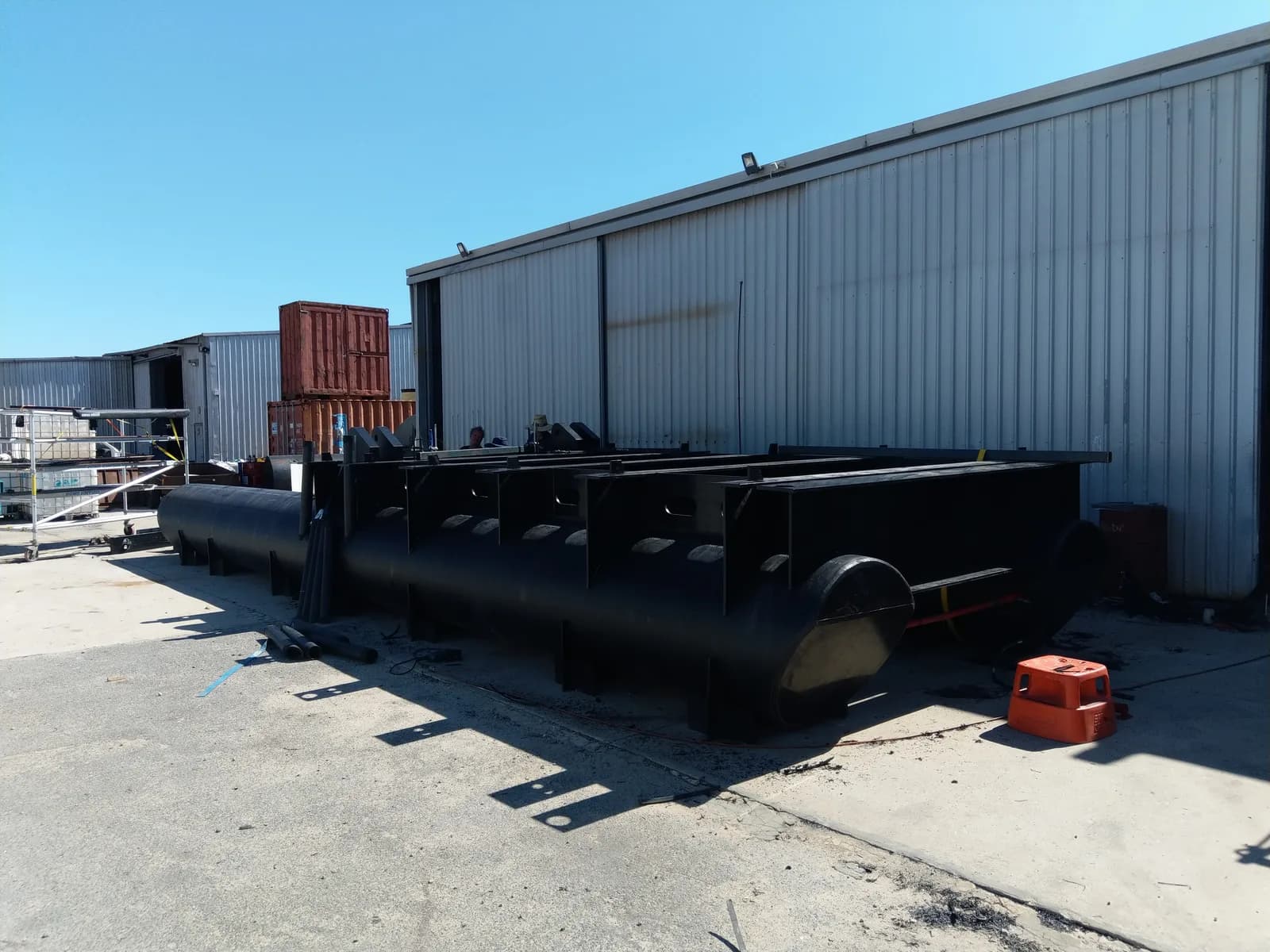

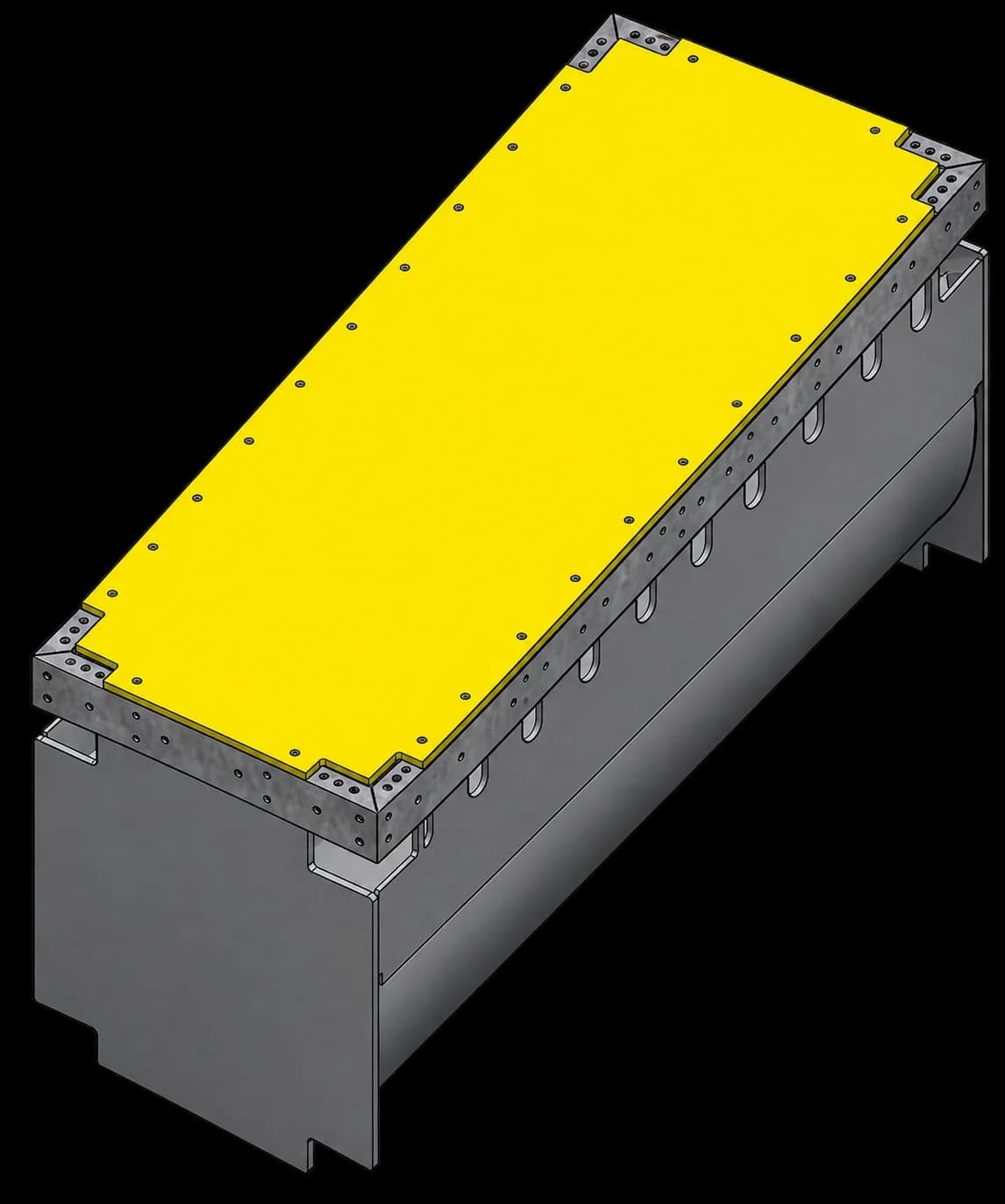

Connect pontoon modules to create platforms for pumps and other equipment. Steel I-beams distribute pump loads across the supporting structure, with flotation sized for the complete installation.

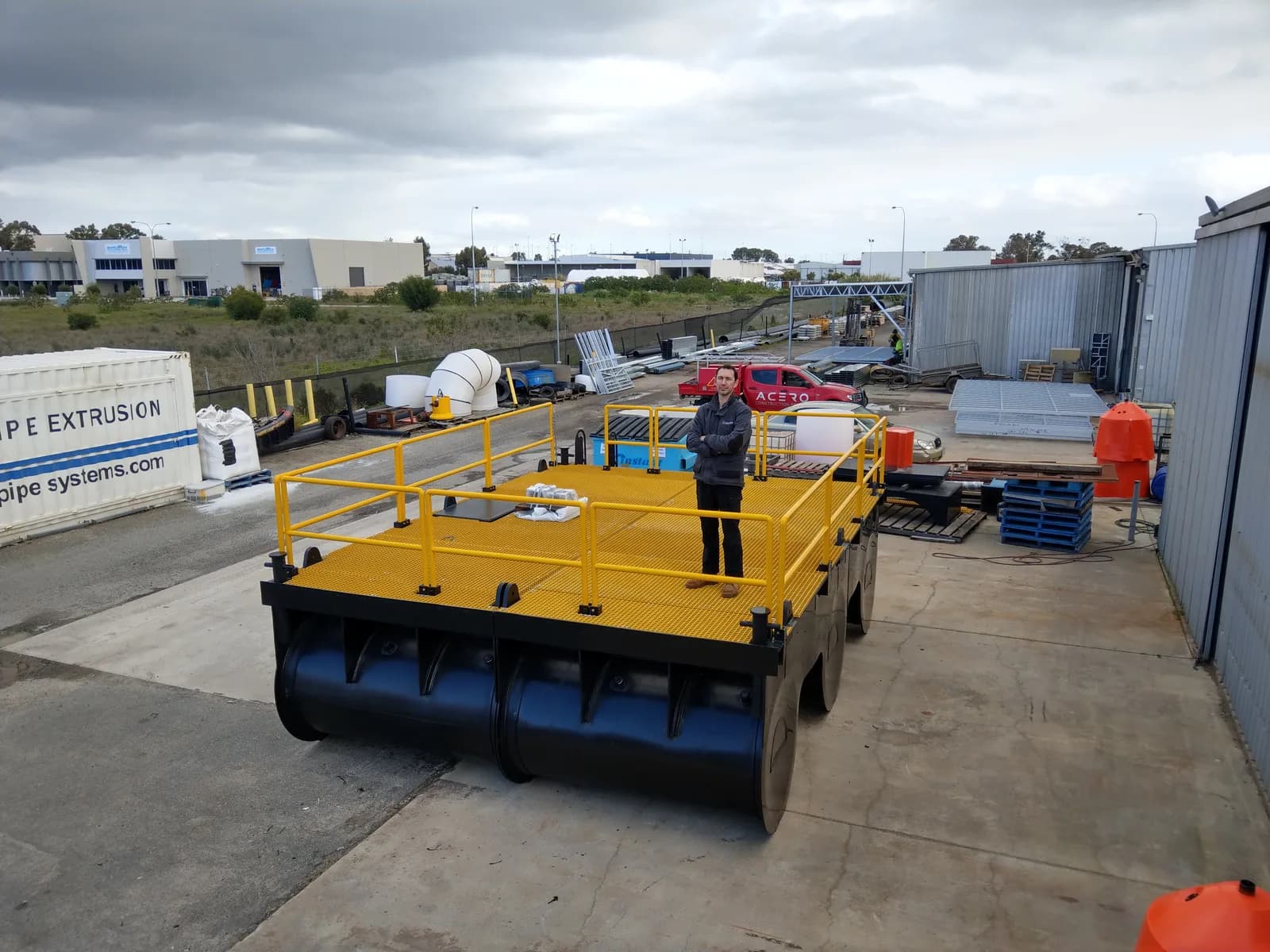

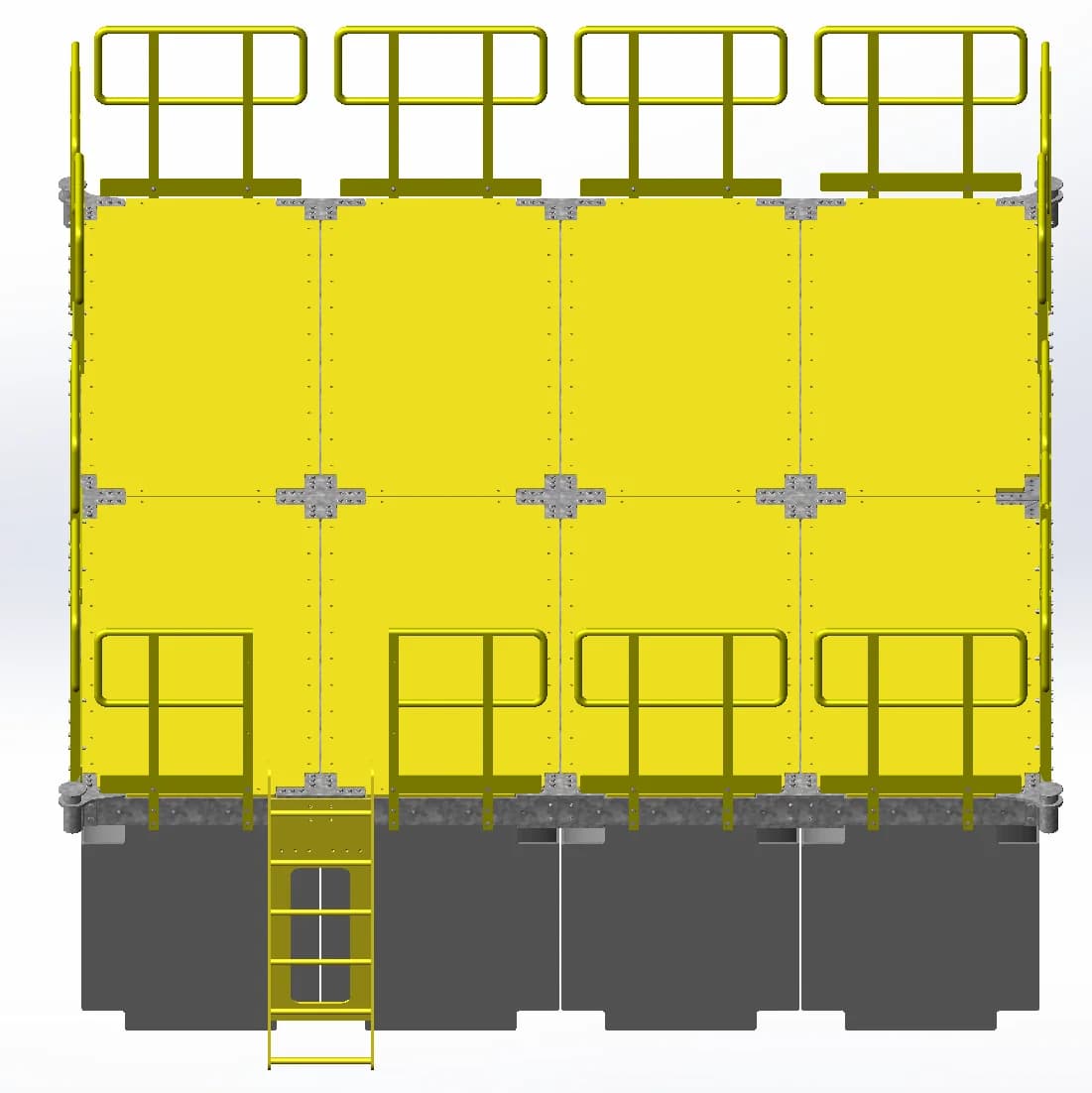

Bollards, ladders and handrails can be added where needed. Removable tread plates cover cables and steelwork, helping keep the deck clear while allowing maintenance access.
Discuss platform options →Built in sections. Easier to move and change.

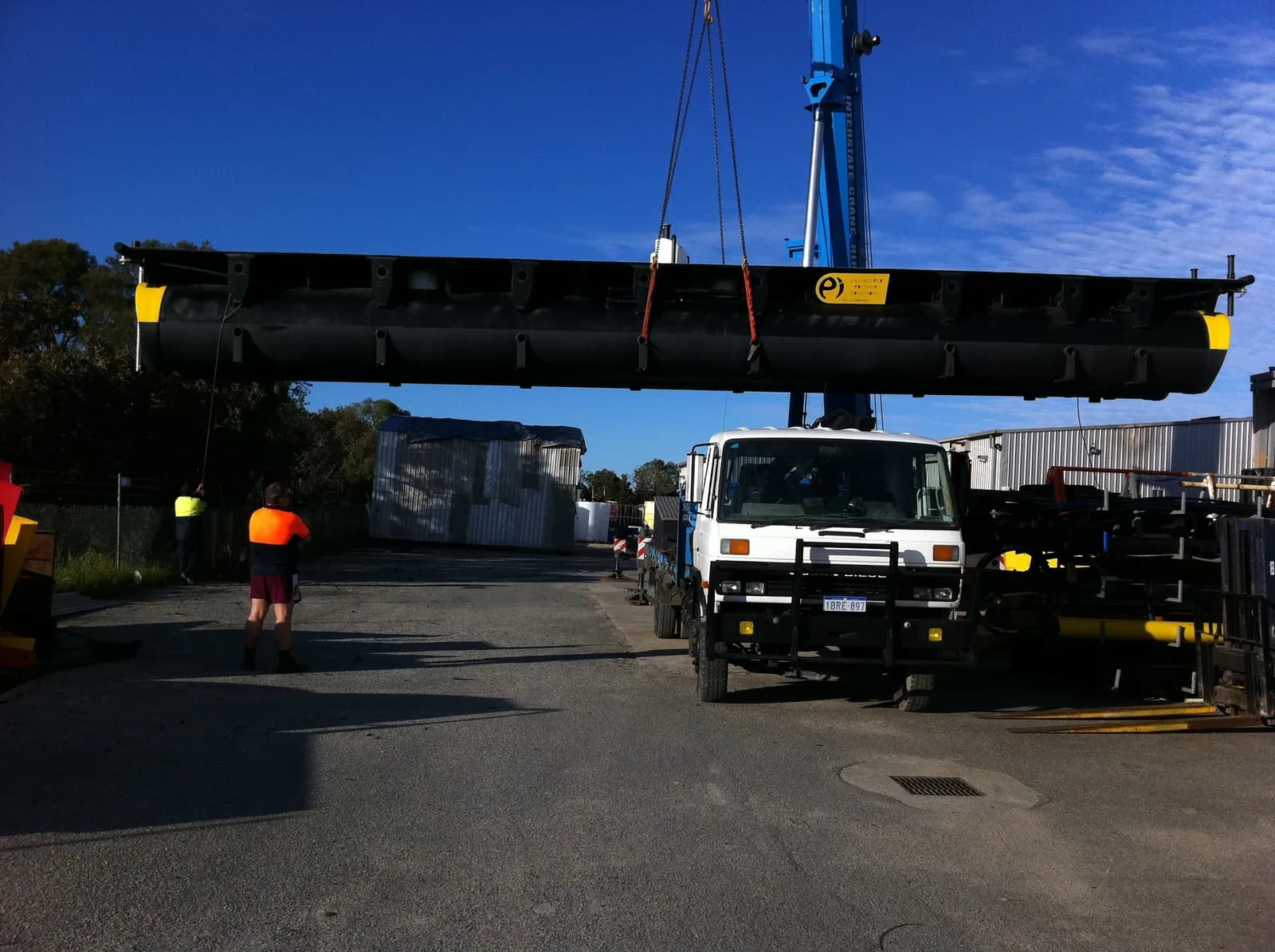

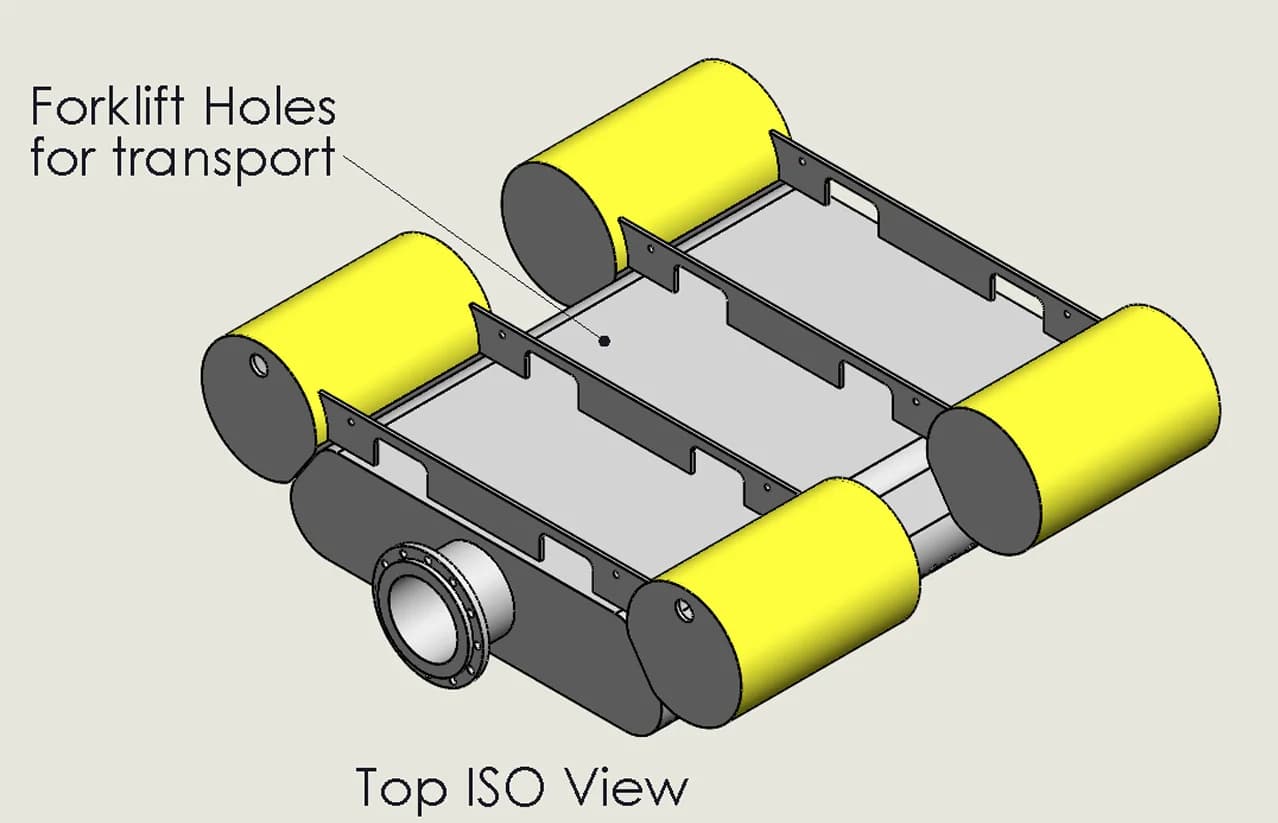

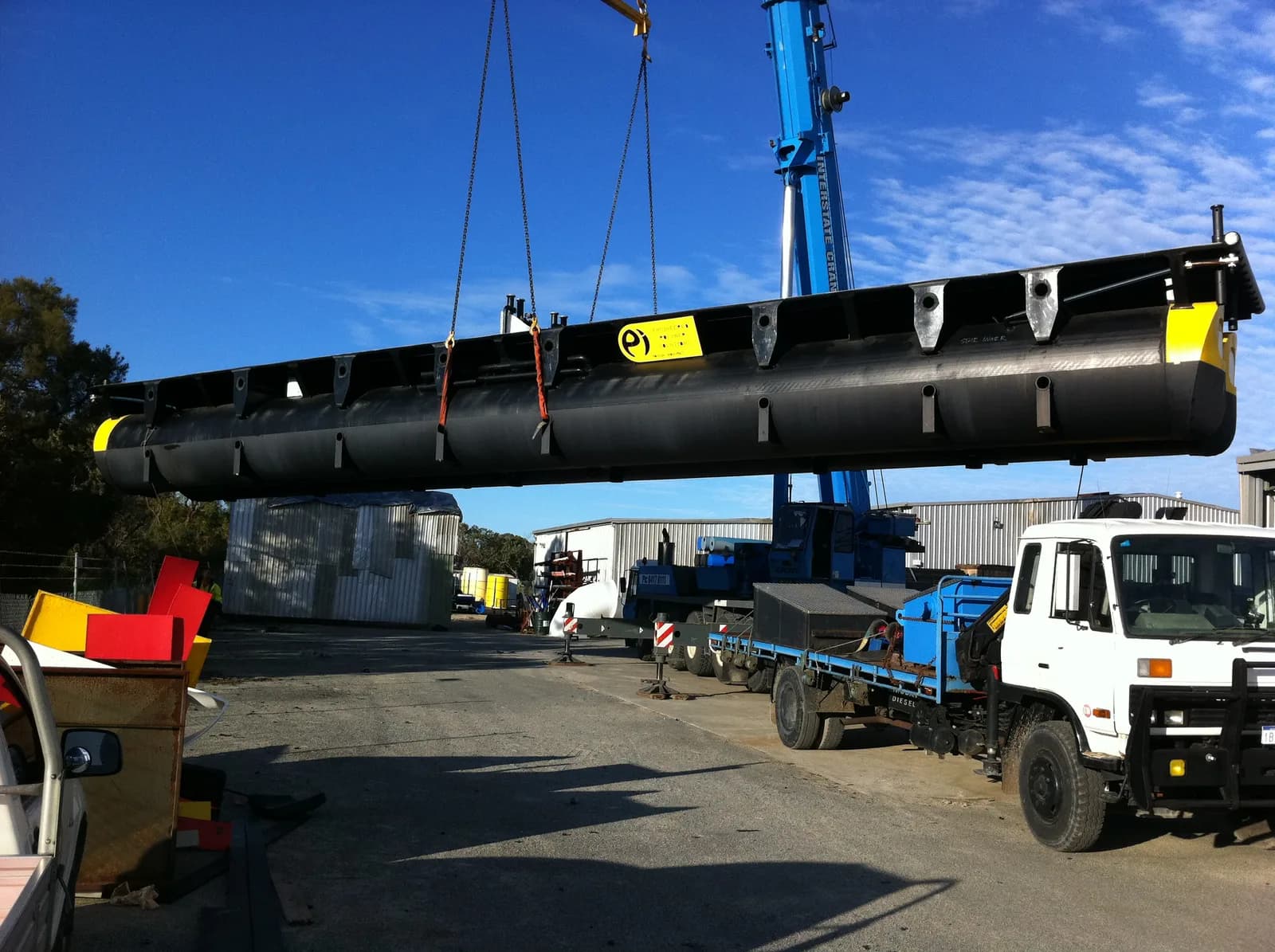

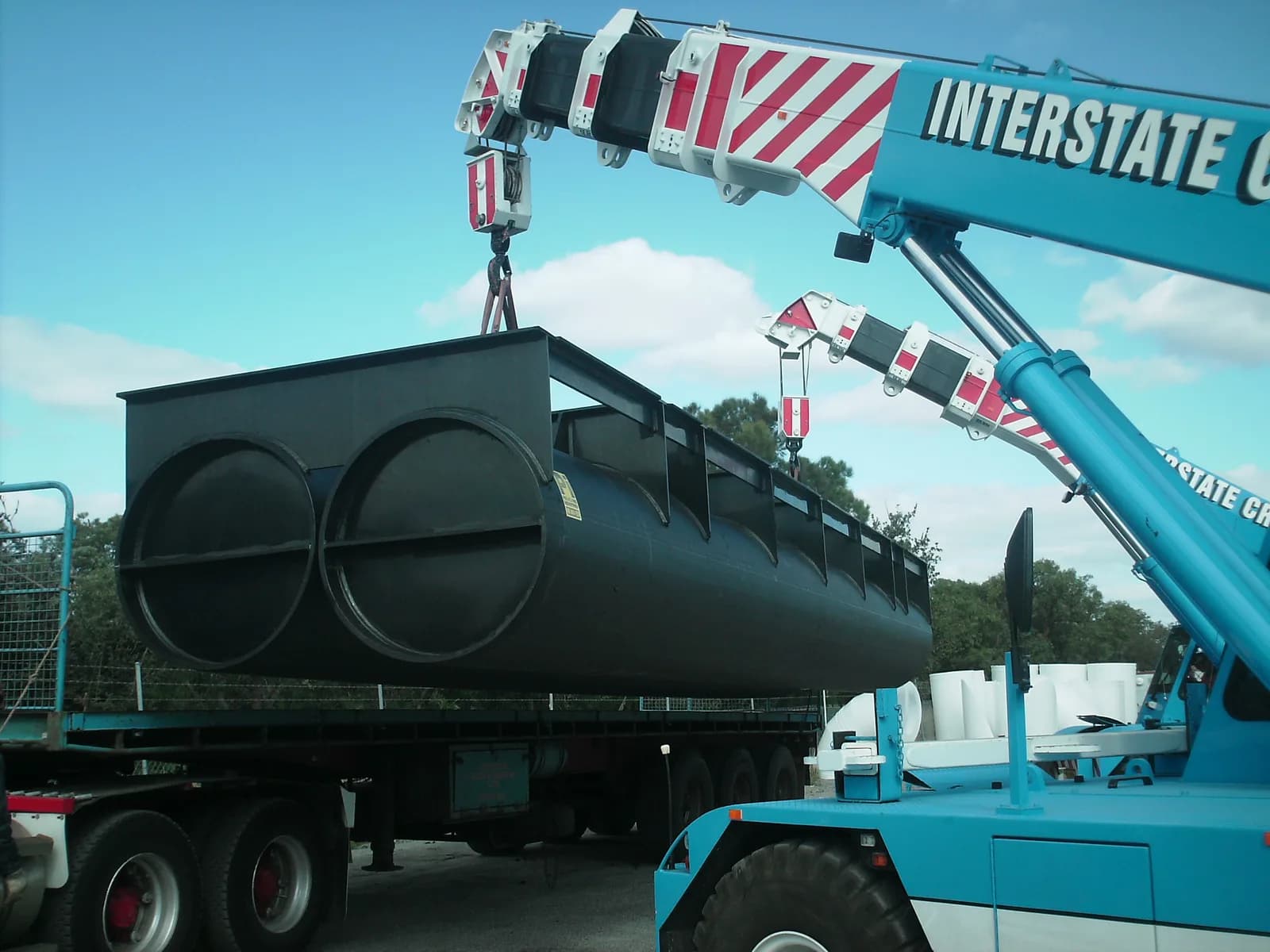

Efficient transport
Ship separate modules and assemble them at the destination.

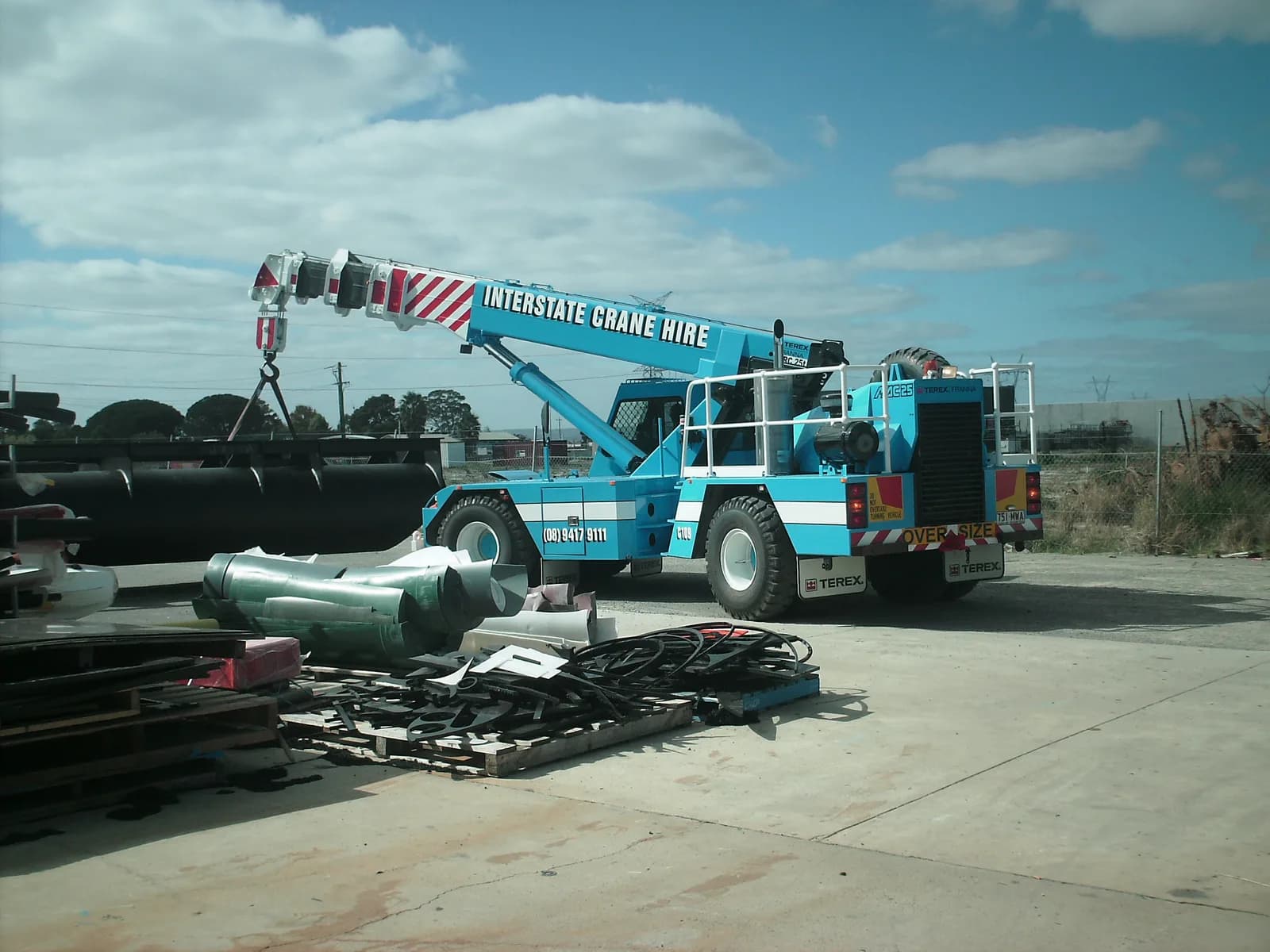

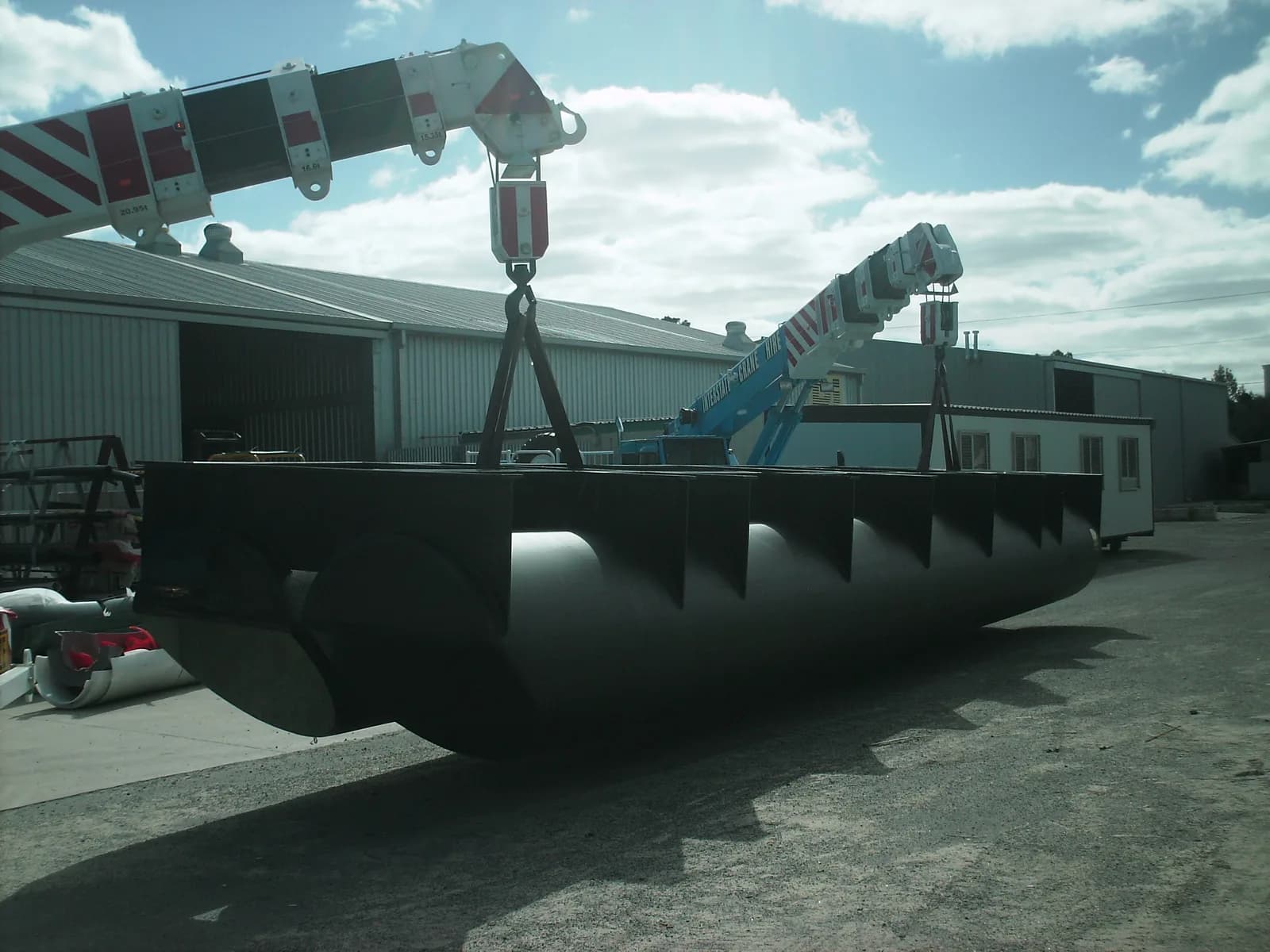

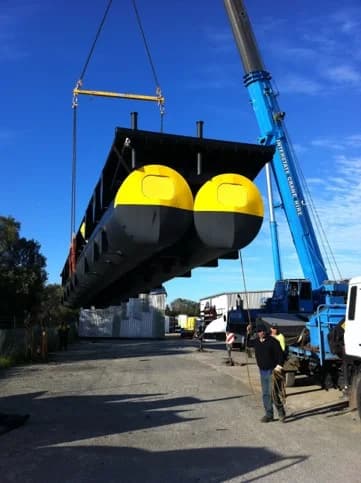

Manageable lifting
Smaller components can reduce the lifting equipment needed during installation.
Room to adapt
Add or rearrange sections when equipment or access needs change, with the revised layout checked for loading and stability.
Individual replacement
Replace a damaged module without replacing the whole platform.

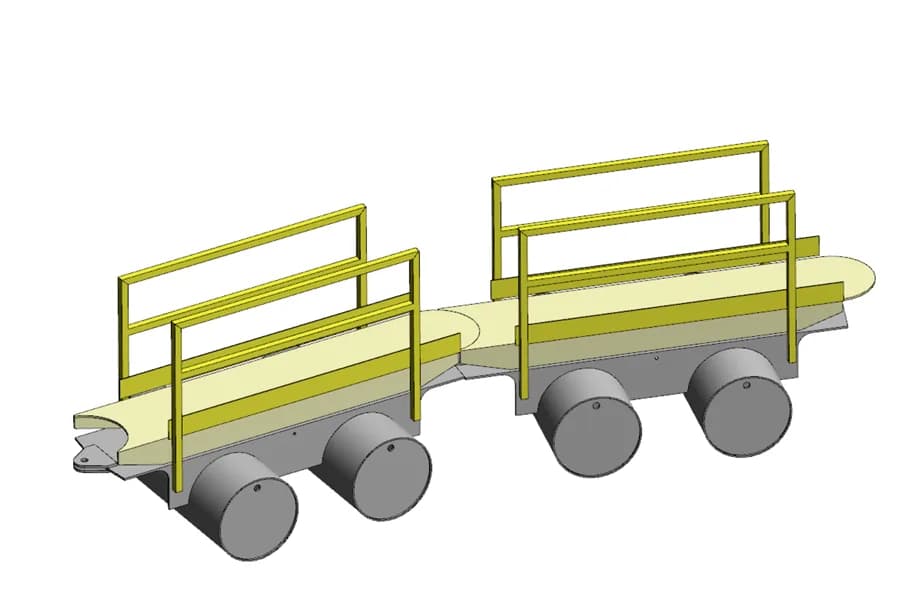

A clear route from shore to platform.

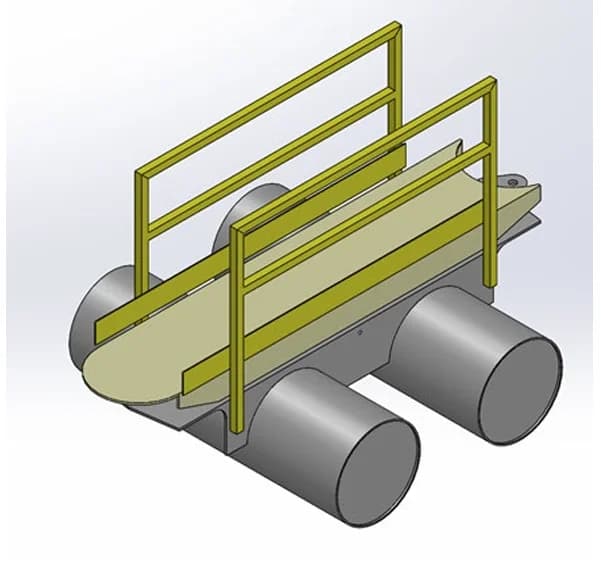

Join walkway sections to achieve the required length. Two-plane articulated connections accommodate movement, while shore ties and anchor points keep it within the design limits.
Built-in cable trays carry services beneath removable tread plates, leaving them accessible without cluttering the walking surface. Handrails and access details complete the route.
Discuss walkway access →Move the intake without moving the pump.
An independently floating screen lets you choose the intake position separately from the platform. Adjusting the connecting pipe length allows relocation while the pump stays in place, subject to the pumping system’s requirements.
The intake rises and falls with the water. A mud foot helps maintain bottom clearance and reduce the risk of mud entering the pump as levels drop.
Straightforward installation.
Deploy the unit separately, then connect the two flanged ends of flexible or articulated pipework. This reduces the need to align heavy assemblies and avoids placing the intake’s weight directly on the platform. Connections remain accessible for hose replacement.

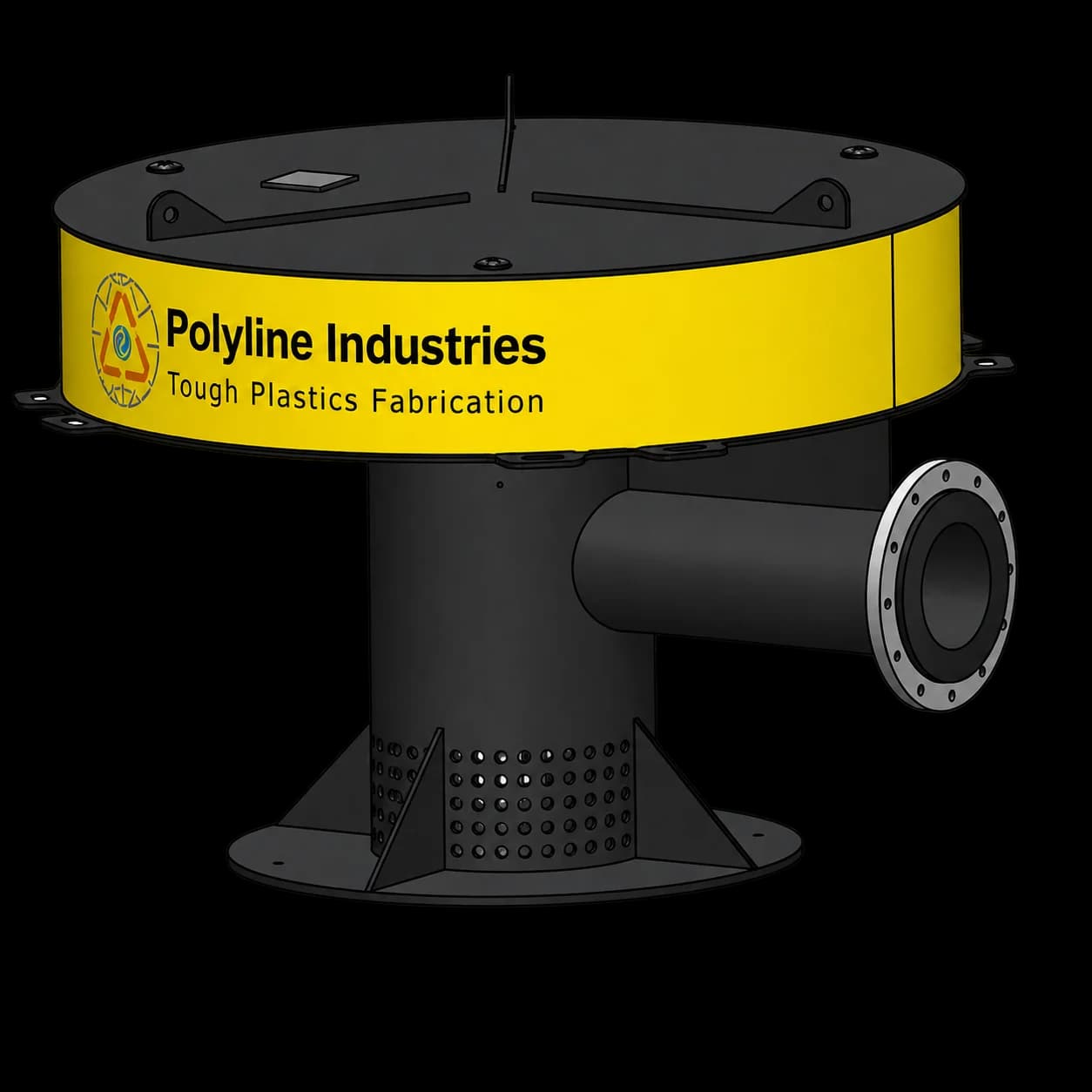

Standard Floating Intake
A self-buoyant screened intake with a mud foot.
Illustrated dimensions: approximately 1.9 × 1.9 × 1.5 m.

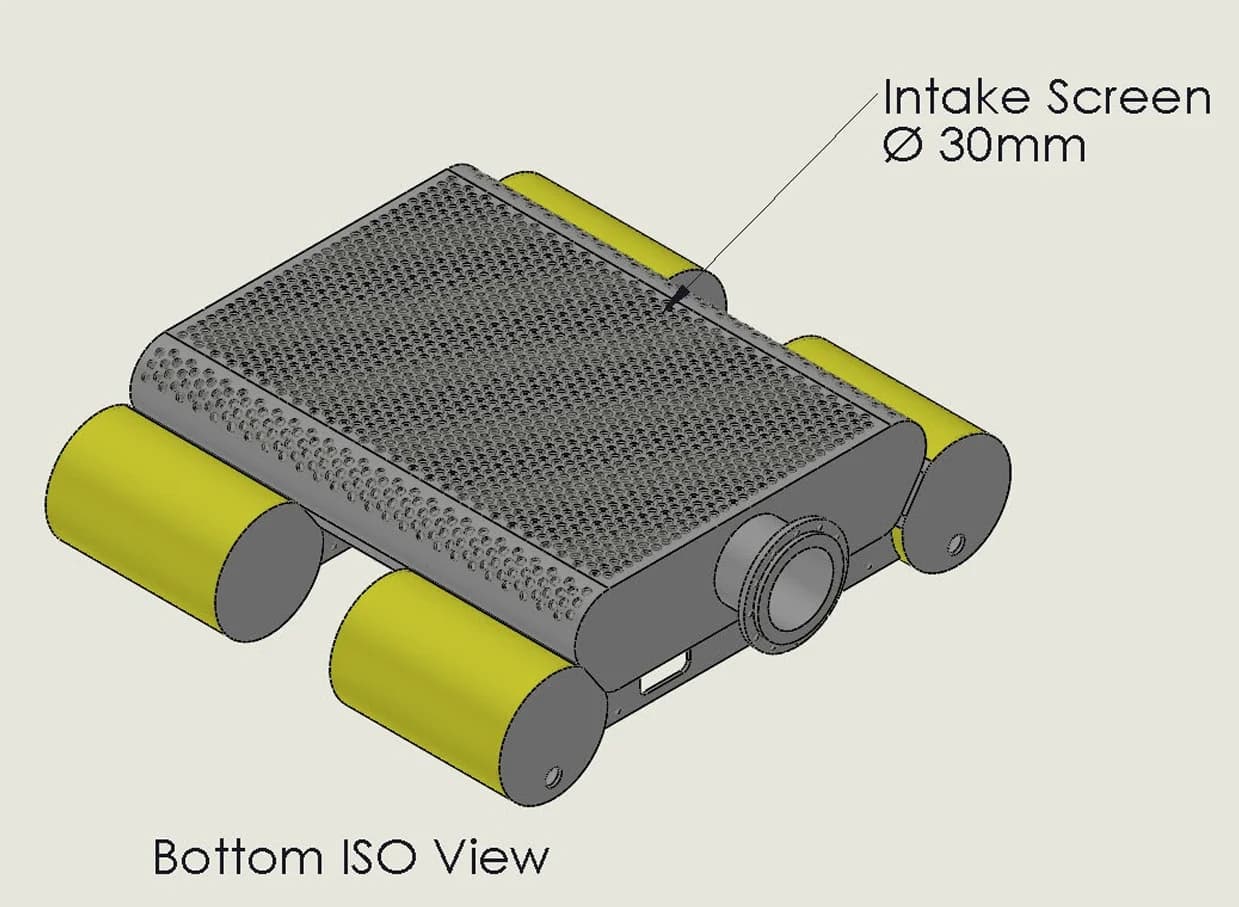

Shallow-Water Intake
A wider, low-profile option where water depth is limited.
Illustrated footprint: approximately 2.2 × 2.3 m.
Screen openings, pipe connections and operating depth are selected to suit the required flow and application.
Discuss an intake screen →Bring the components together.
Send your pump details, equipment loads, preferred layout and expected water-level range. We’ll help develop the platform, access route and intake arrangement as one coordinated installation.

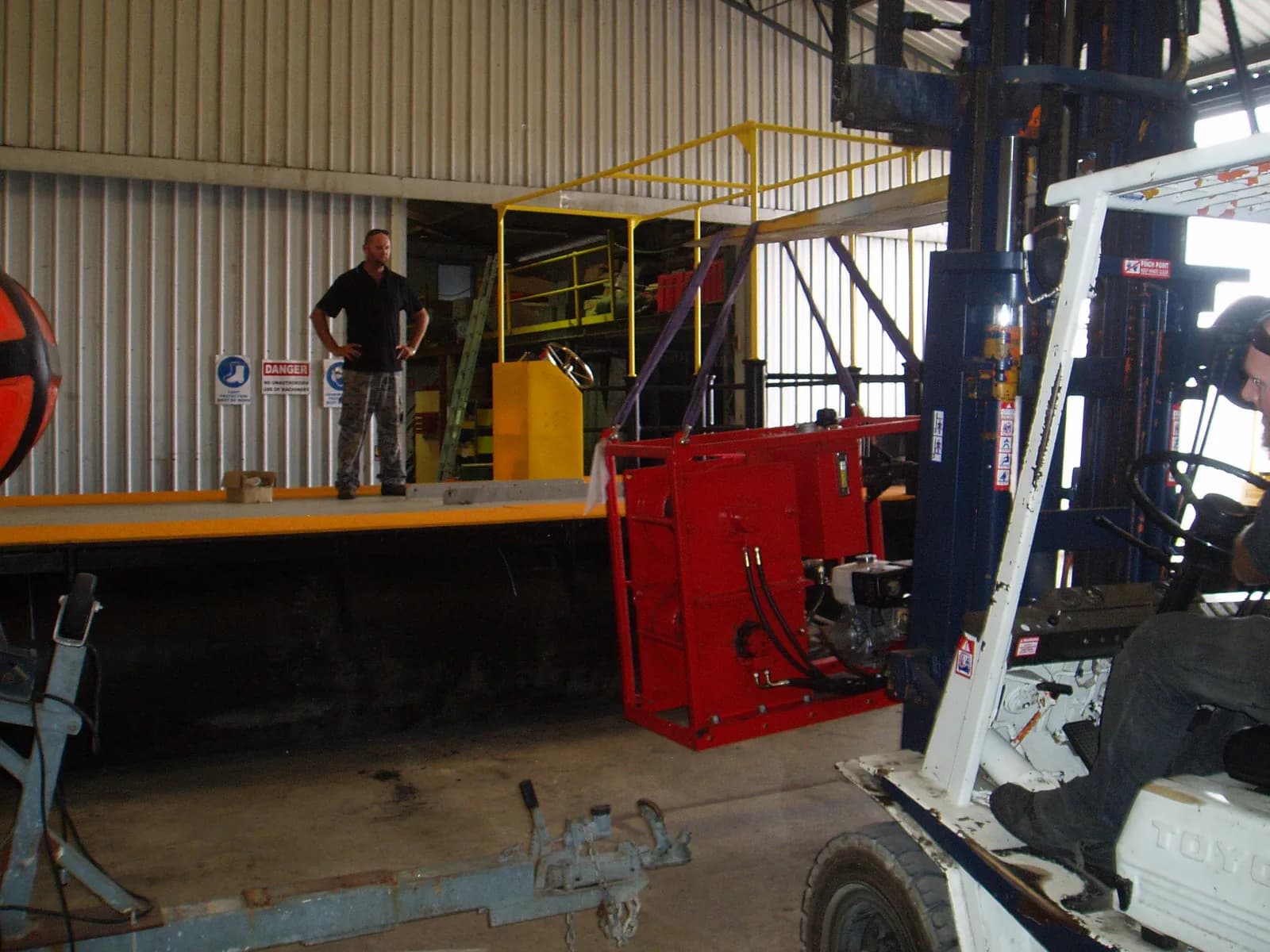

Built for work on the water.
See examples of pontoon assemblies, pump platforms, walkways and floating intakes. Project-specific dimensions are examples, not standard specifications.
