Damper Doors
Self-closing fan-circuit damper doors — HDPE plate, plastic-hinged, fitted to the fan flange. Stops air back-flow when the fan is off, and acts as a flow-control isolation point for primary-circuit work.
At a glance
Specifications.
Why this product
Engineered for working sites.
Damper doors are HDPE flow-control plates fitted to the fan flange. They self-close when the fan stops — preventing air back-flow into the fan — and act as a positive isolation point for crews working on the primary circuit.
- HDPE plate with poly self-lubricating hinge — corrosion-free, no seizing
- Self-closing under fan stop — back-flow prevention
- Configurable for left- or right-hand-facing installation
- Fabricated to your drift / fan-case geometry
- Installation kit and illustrated procedure supplied with every door

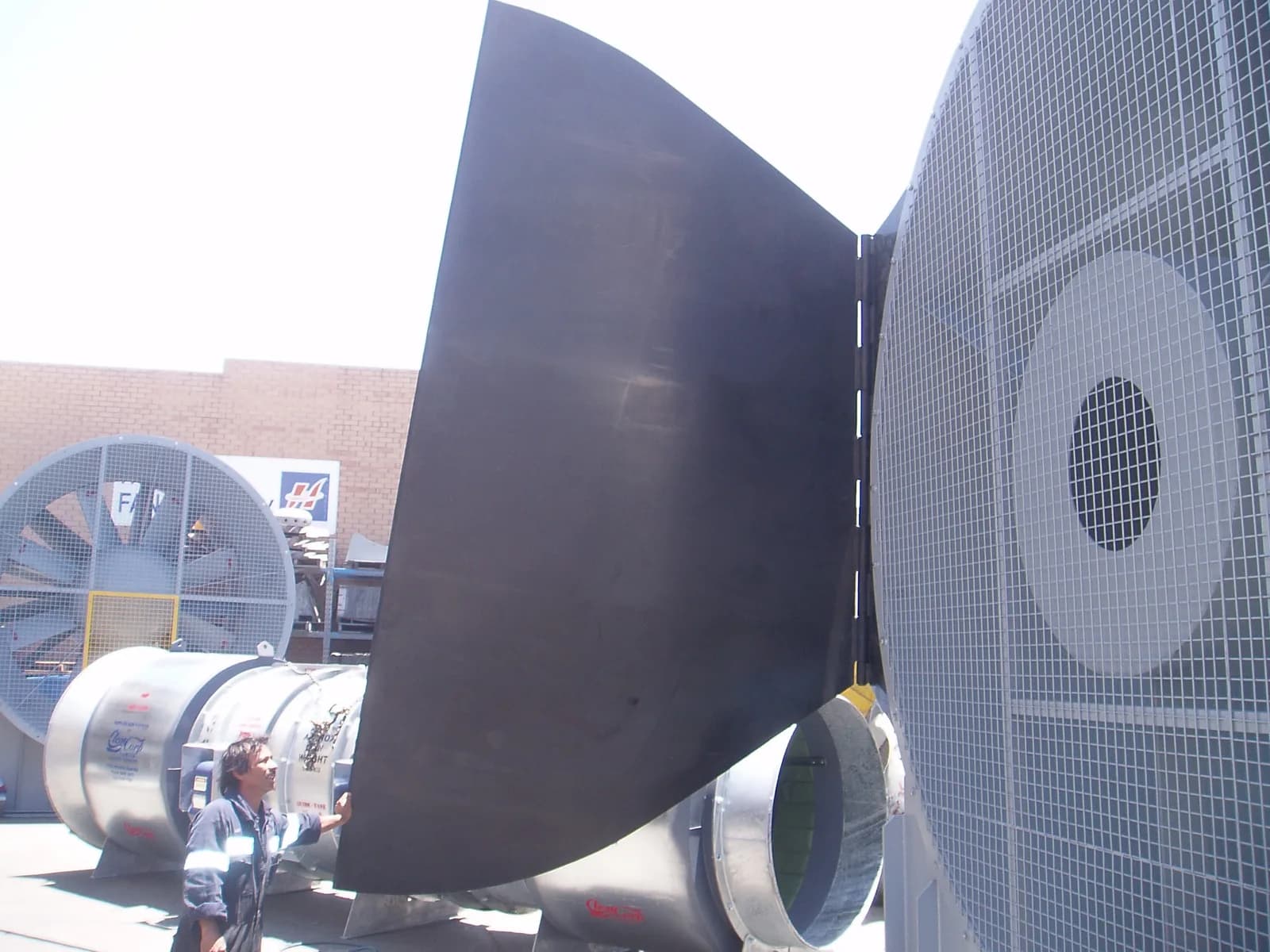

Installation procedure (left-hand-facing door, three-part install): (1) Hinge and door arrive as one unit. Lift via the top-stringer shackle into position; rest the bottom of the hinge on the stiffening plate; clamp door + hinge to the fan flange. (2) With the door slightly open, drill 8 evenly-spaced holes through the hinge and fan flange using a 24 mm drill bit; pass the bolt and washer through, with a 10 mm plate washer on the back. (3) Tighten all nuts/bolts and test the door action. Repeat as a mirror install for a right-hand-facing door.
Sizes
Pick a size — or spec your own.
| Size | OD | Length | Weight | Notes |
|---|---|---|---|---|
| Standard damper door | — | — | — | Cut-to-flange diameter · 8-bolt mount pattern · LH or RH facing |
| Custom geometry | — | — | — | Flow-control variants fabricated to your drift, drive or fan-case |

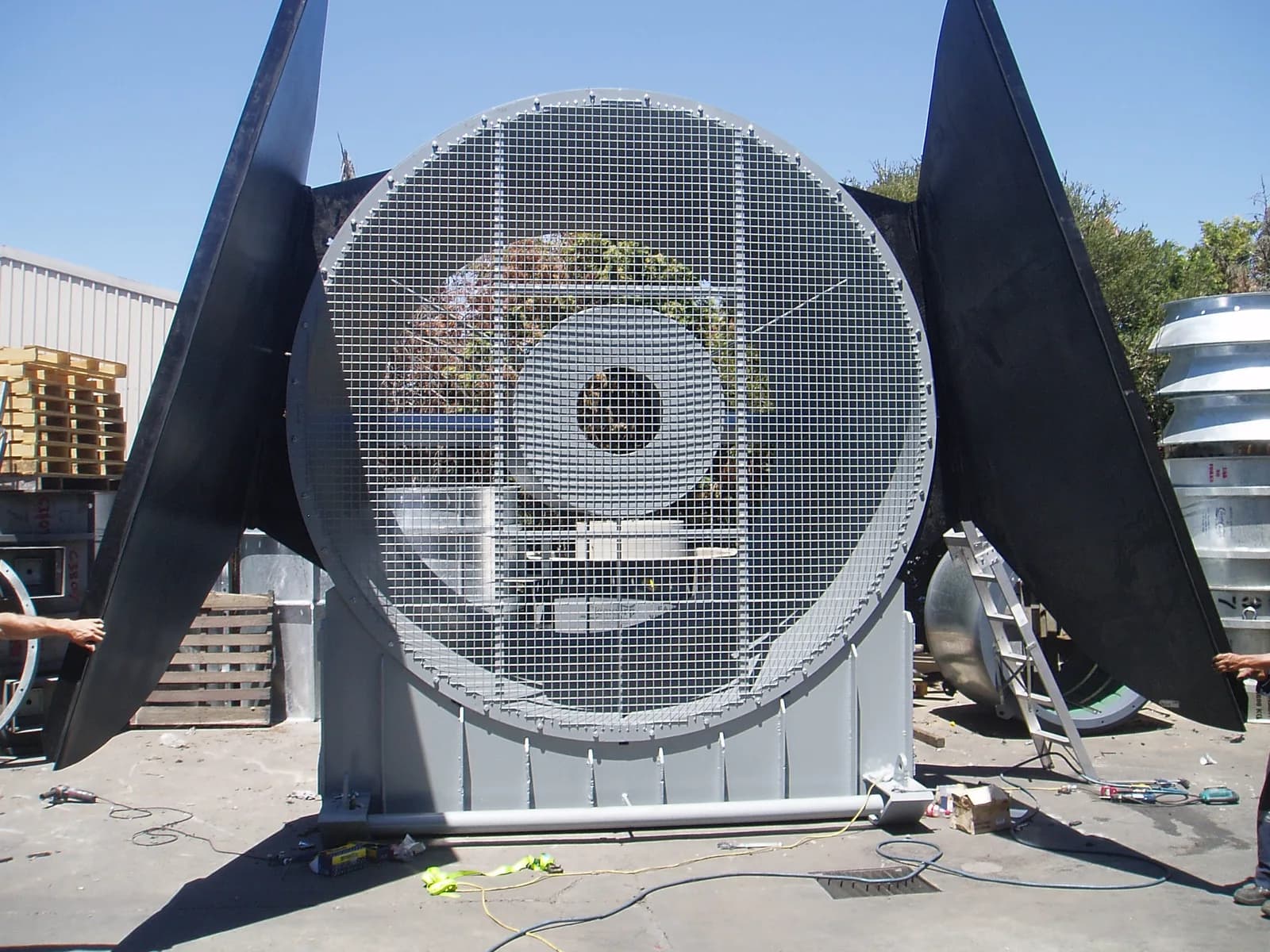

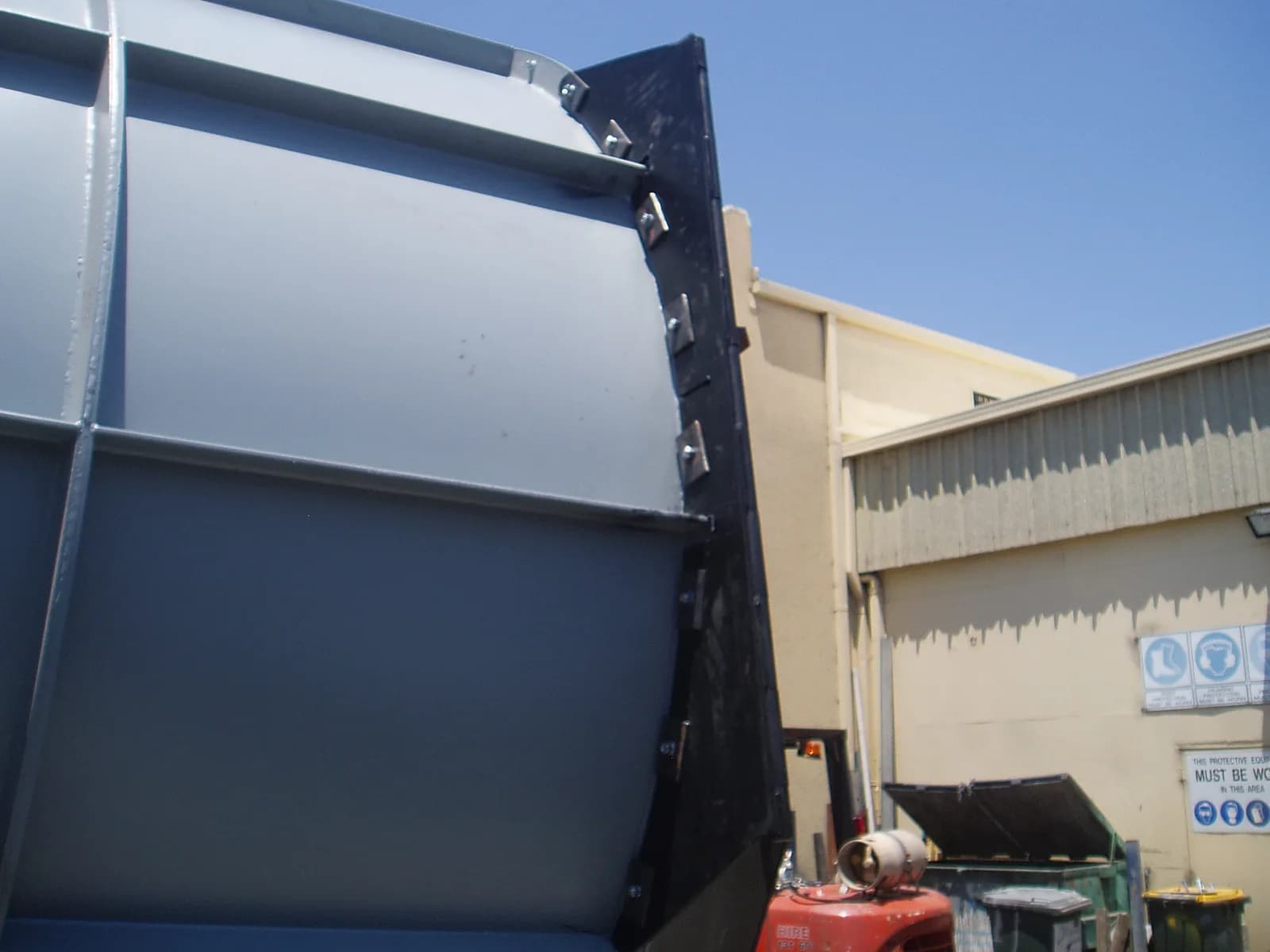

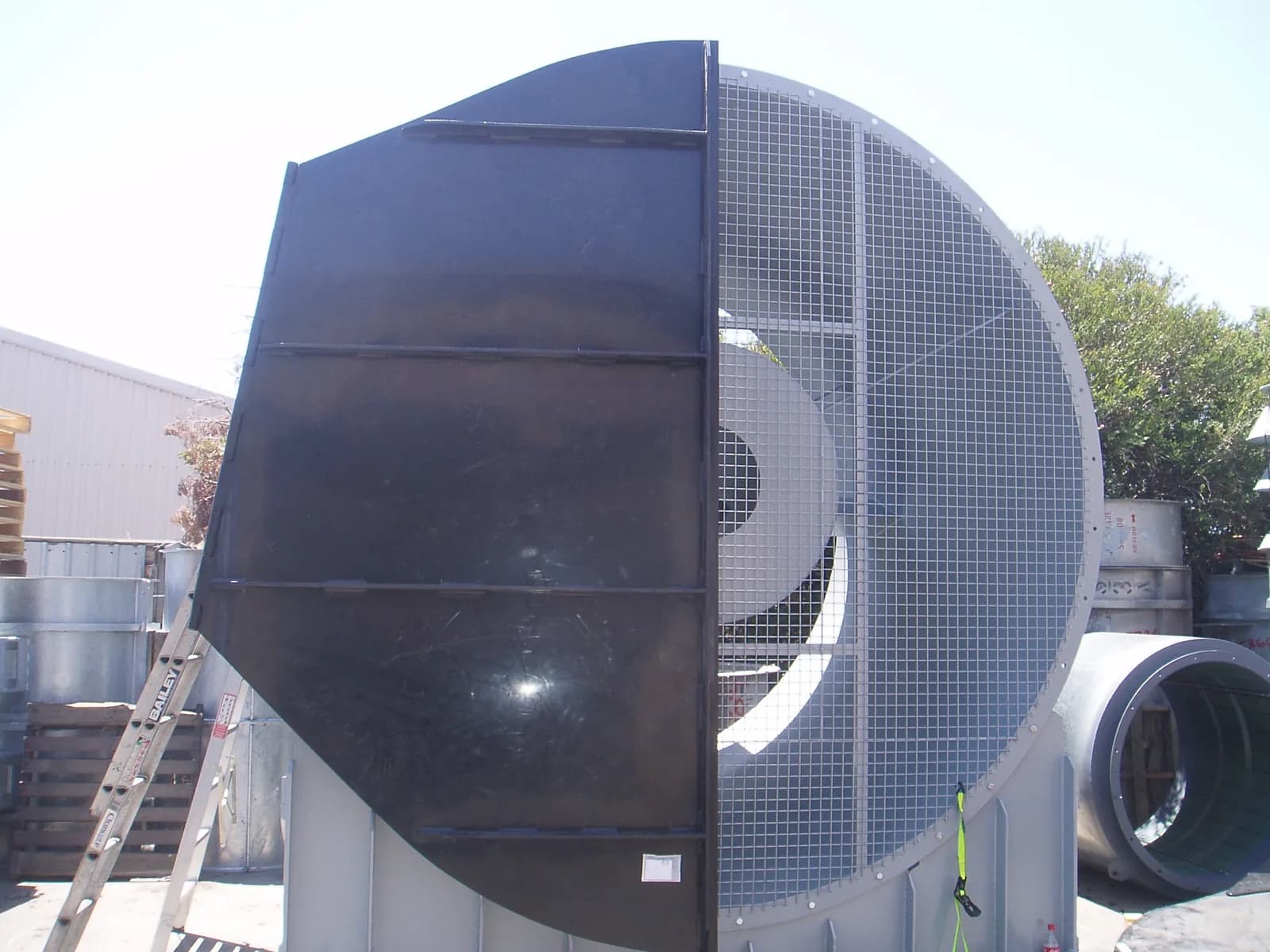

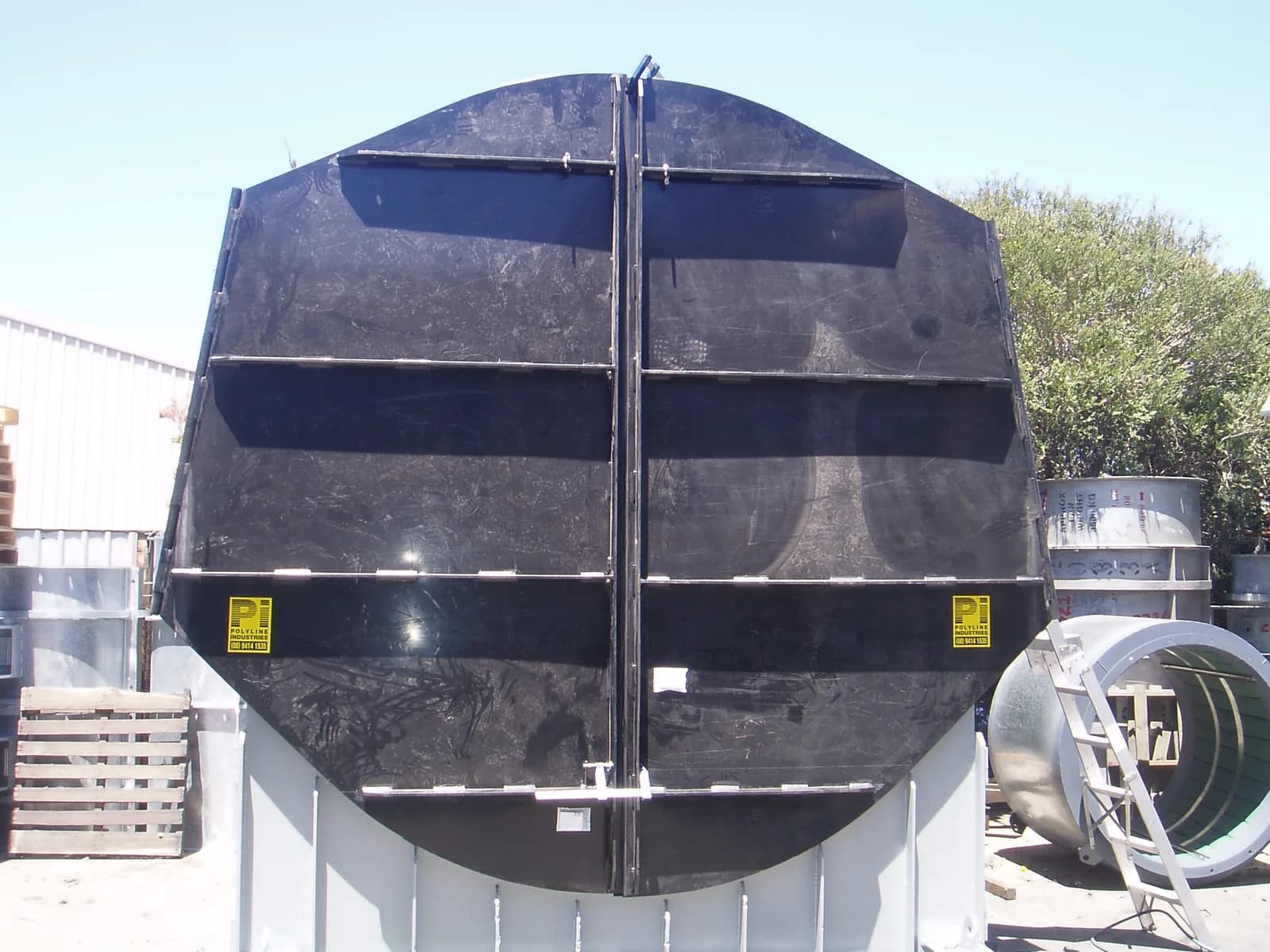

Gallery
Built in WA.
Ready to specify damper doors?
Send your site details and requirements — our engineering team will scope and quote.
